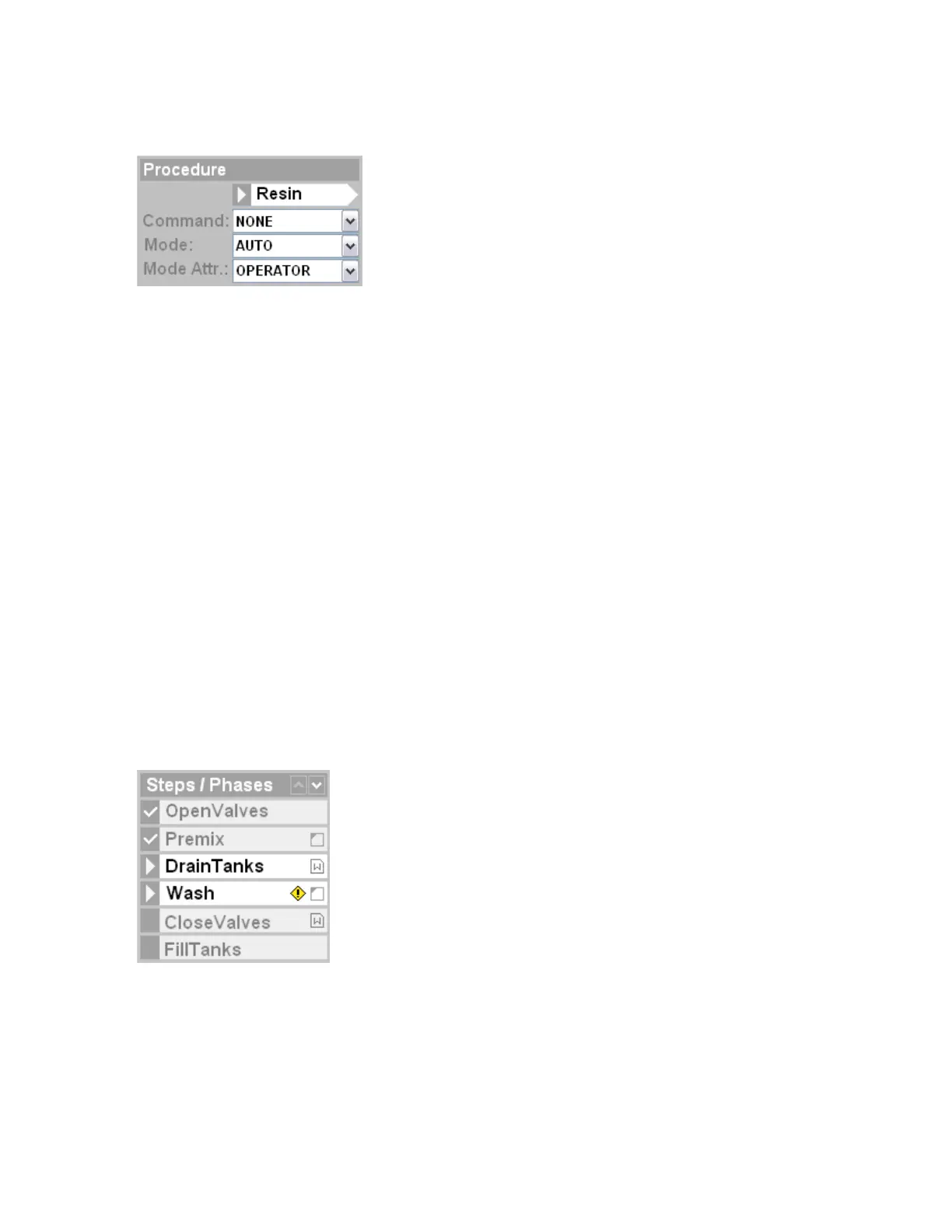

Procedure panel control
The background and foreground colors of the control label can be configured to be specific
colors, so the procedural operation panel controls in your system may look different to the one
shown here.
Step and phase list control
The step and phase list controls contains a set of either step controls, phase controls, or a
mixture of both. When there are a lot of controls included in the list, scroll buttons are
provided to enable the Operator to scroll through the controls.
If the control has been created to contain only steps or phases rather than a mix of both, the
title will change to reflect the control type and be either Steps or Phases.
The following image displays a list of steps and phases.
n
The step called OpenValves and the Premix phase are complete.
n
The step called DrainTanks and phase called Wash are running. The DrainTanks step
has a warning status and may require Operator attention. The Wash phase is
experiencing a special phase warning.
n
Two steps (CloseTanks) and (FillTanks) are in a Pre-exec state.
Step and phase list control
Step control
The step control provides feedback on the state and execution status of a step.
The following image displays a step called Drain Tanks, which is running.
Operating a batch or procedure
Honeywell 2017 279
