Executing a batch or procedure from an activity detail display

From the Activity Detail display for a given batch or procedure you can perform the

following actions:

Monitor batch or procedure progress

Change the batch or procedure parameters

Adjust formula parameters

Review report parameters

Command batches or procedures

Interact with a confirmable instruction

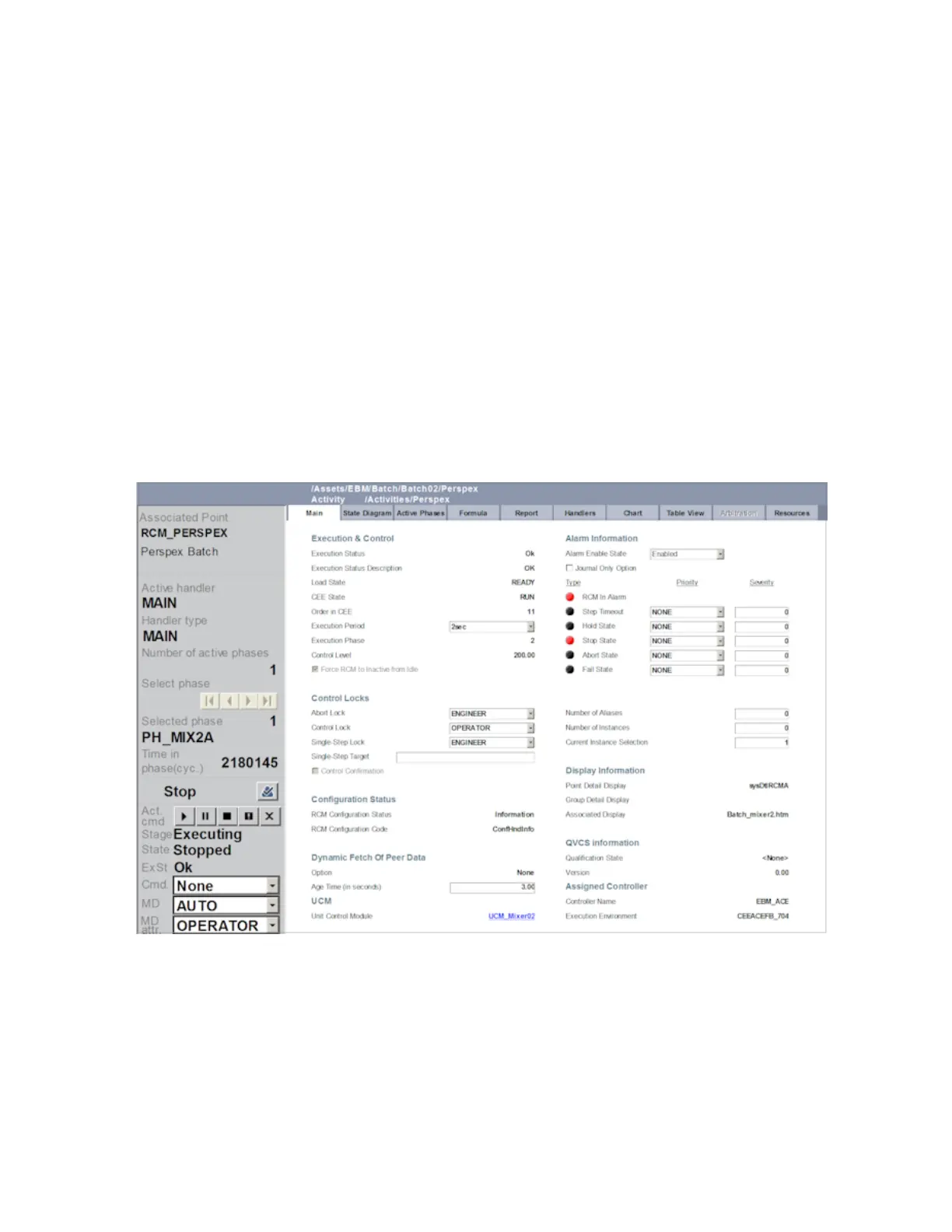

Activity Detail display

Operating a batch or procedure

Honeywell 2017 282
