Accessing Equipment Detail displays
Equipment detail displays contain a lot more information about the equipment, and enable
interaction with more of the equipment parameters.
To call up an Equipment Detail display
1. From the menu bar, click View > Equipment.
The Equipment Summary appears.
2. Click the name of the equipment you want to view, for example
GWPODWELLM003.
The Equipment Detail display for that equipment appears.

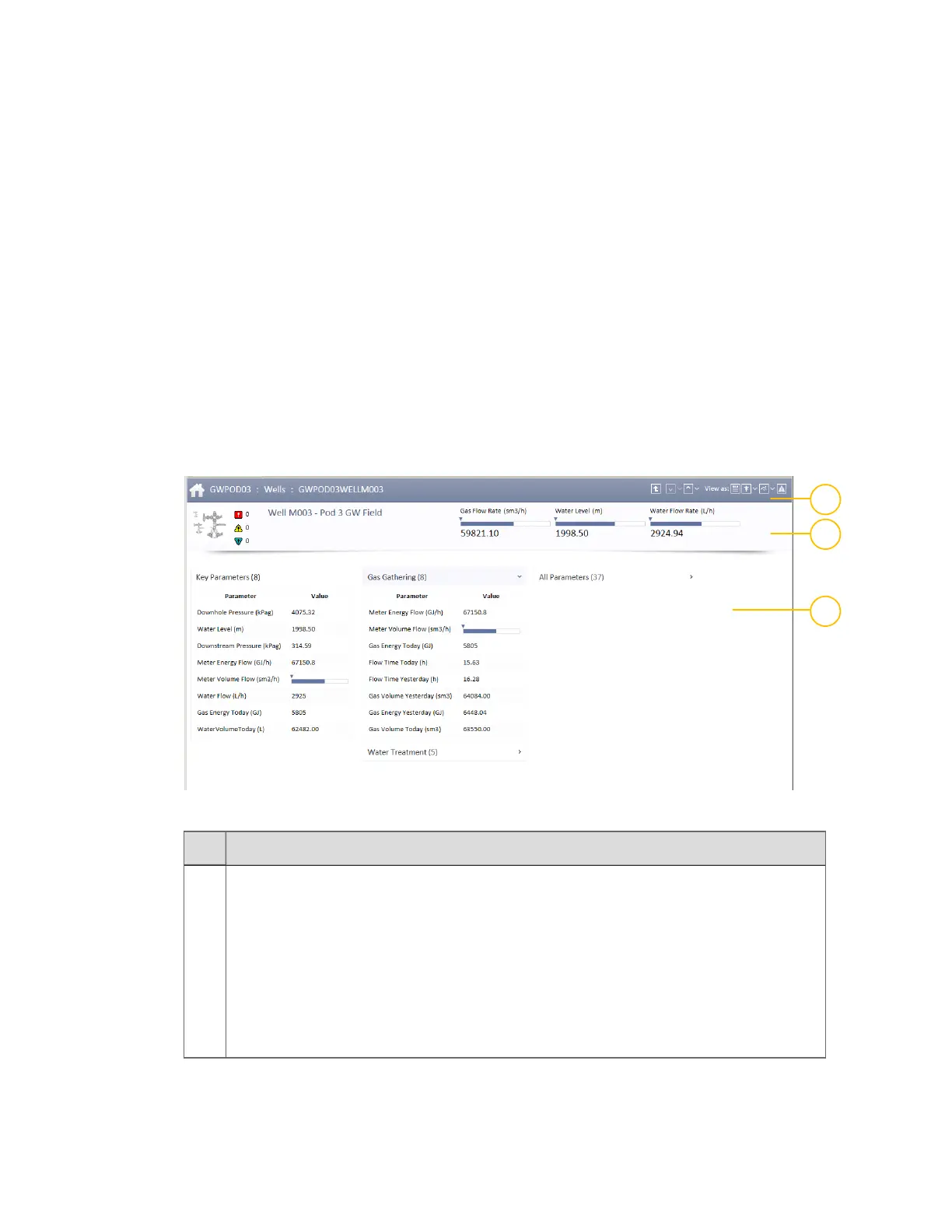

Equipment Detail display
1
2
3
Item Description
1
Equipment Detail header, containing:
l
Navigation options, enabling you to move to other equipment items from the
filtered list on the summary.
l
View icon (table, trend, or schematic view) – click to move between data
views.
l
A list of links for other content related to this equipment, such as the Alarm
Summary.
Equipment Detail display elements – table view
Viewing equipment
Honeywell 2017 87
