Honeywell Experion LX User Manual

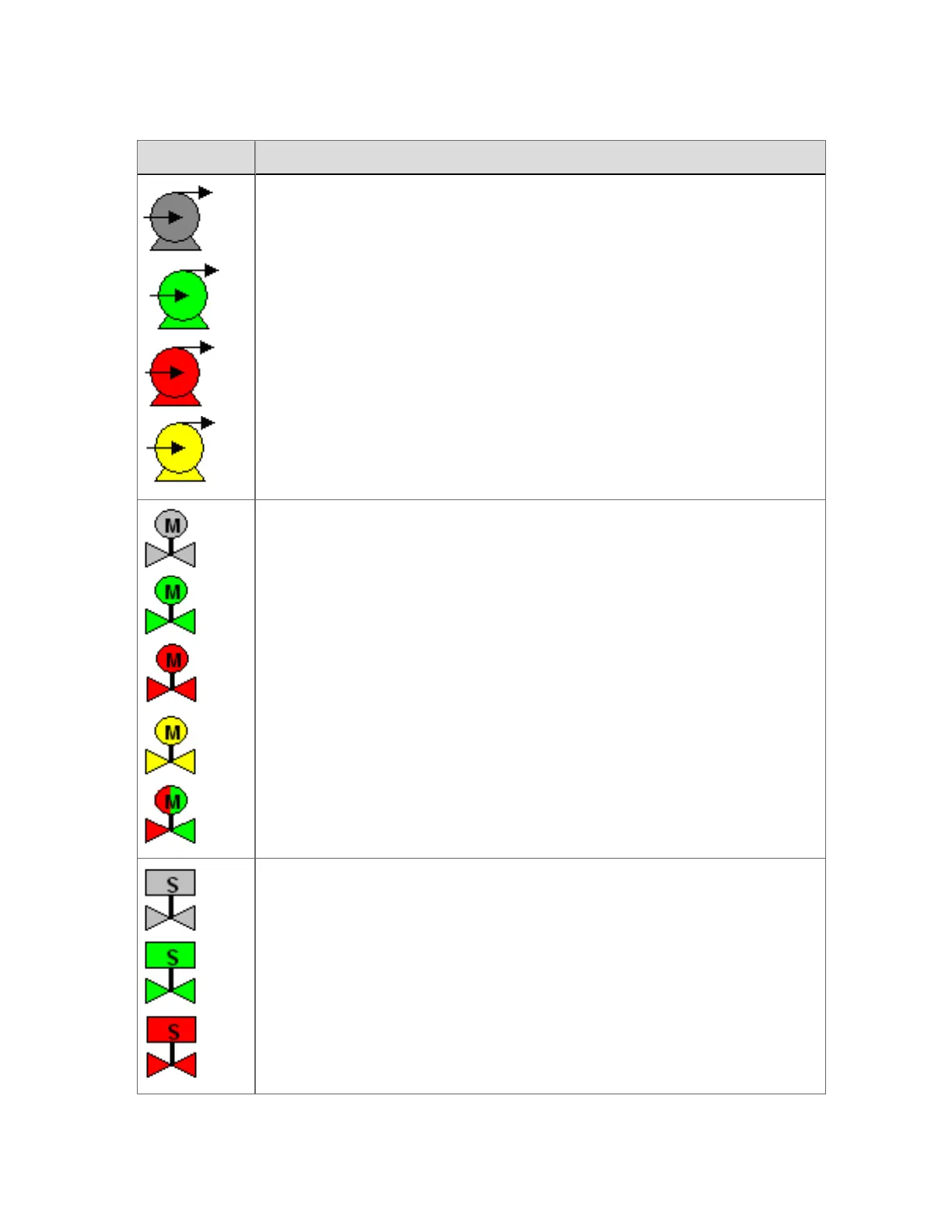

Symbol Description
Gray = Motor is inactive.
Green = Motor stopped/closed after the stop command is issued and feedback is
received.
Red = Motor running after the run command is issued and feedback is received.
Yellow = Motor is bad (CM/CEE Inactive). Received no feedbacks, or
receiving both run and stop feedbacks.
Gray = Damper is inactive.
Green = Damper is closed, after the close command is issued and feedback is
received.
Red = Damper is open, after the open command is issued and feedback is
received.
Yellow = Damper is bad (CM/CEE Inactive), receiving both open and closed
feedbacks.
Gray = Valve is inactive.
Green = Valve is closed, after the close command is issued and feedback is
received.
Red = Valve is open, after the open command is issued and feedback is
received.
Yellow = Valve is bad (CM/CEE Inactive), receiving both open and closed
feedbacks.
Indicator Zone symbols for points(continued...)
Using faceplates
Honeywell 2017 71
