COMMISSIONING
Part No.: 4417340 Revision 1 Service Manual 113
954 SmartServo FlexLine
In analog mode, the connected HART device will be allocated to
Function 1 through 7, depending on the type of HART device
connected.

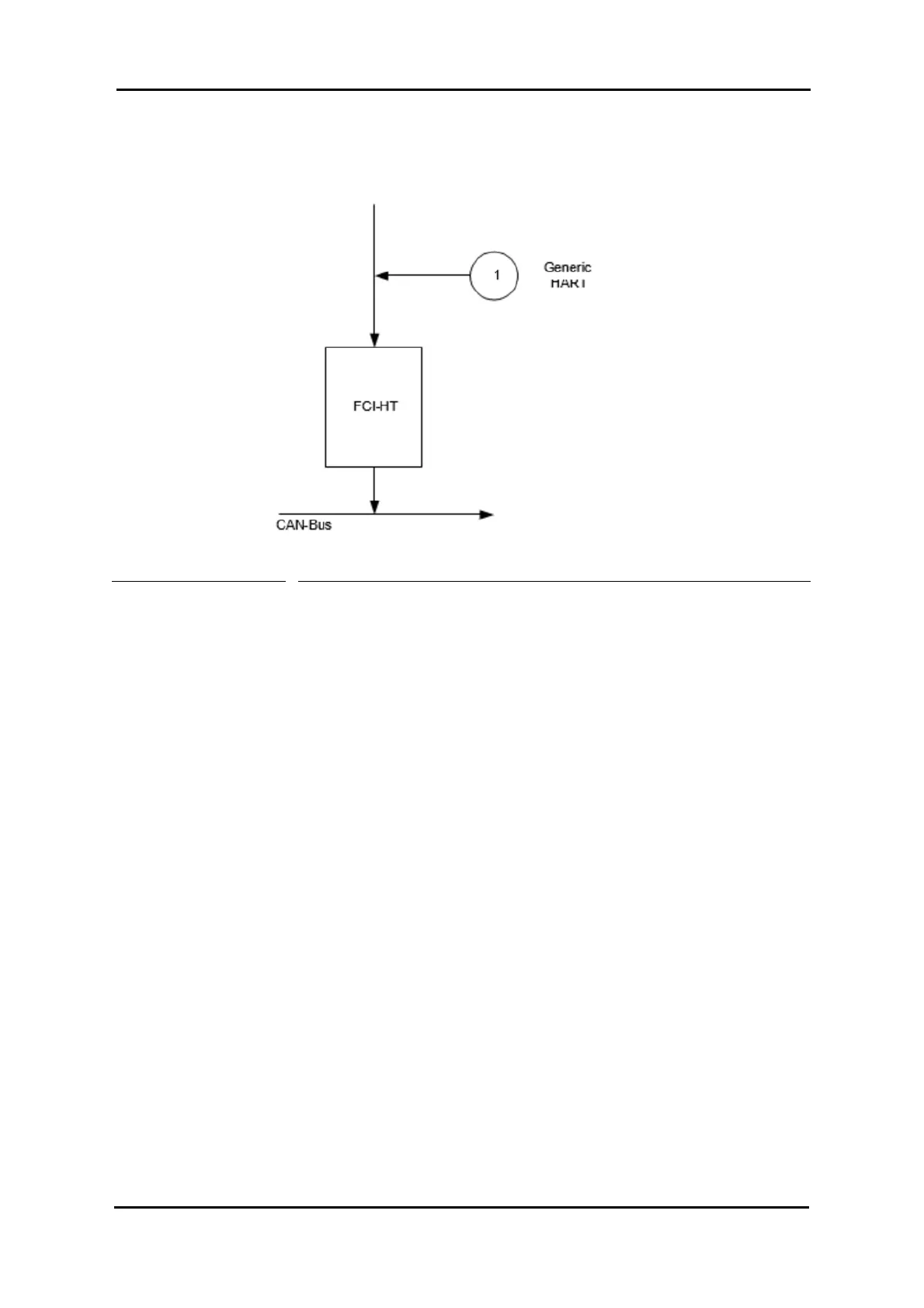

Figure 7-14 Alternate system diagram multi-drop digital mode
