COMMISSIONING
Part No.: 4417340 Revision 1 Service Manual 205
954 SmartServo FlexLine
Level Value with Board W&M intended

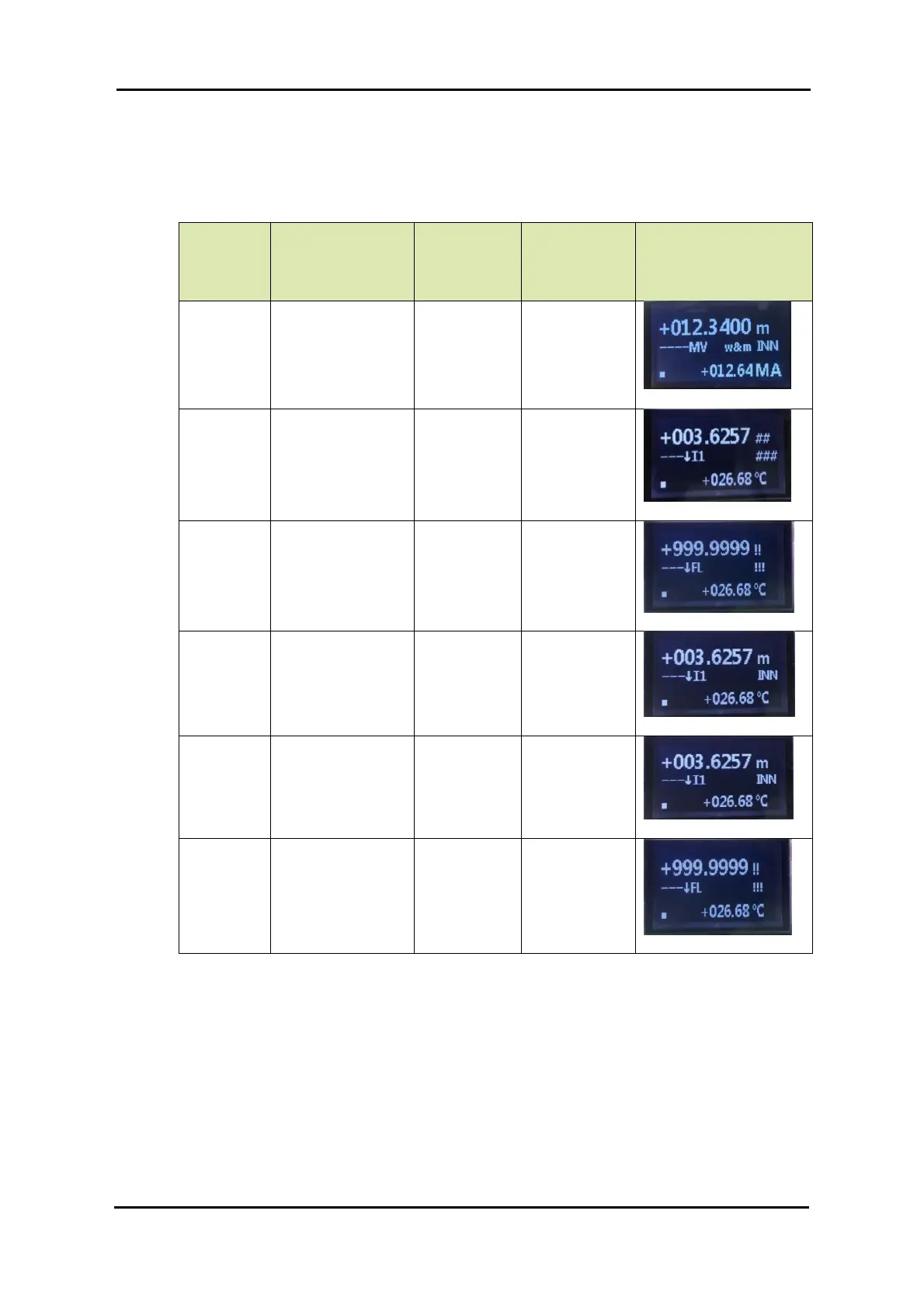

The below screen shows how the level value will appear with Level unit
and Level type when different options on the Board W&M intended are
configured.
Board
W&M
intended
Board health PV Health W&M Status
of Servo
Screen
ENABLE GOOD GOOD TRUE
ENABLE BAD/UNCERTAIN GOOD/
BAD/
UNCERTAIN
TRUE
ENABLE GOOD BAD/
UNCERTAIN
TRUE
DISABLE GOOD GOOD FALSE
DISABLE BAD/UNCERTAIN GOOD TRUE/FALSE
DISABLE BAD/UNCERTAIN BAD/
UNCERTAIN
TRUE/FALSE
