COMMISSIONING
Part No.: 4417340 Revision 1 Service Manual 183
954 SmartServo FlexLine
7.3.10.8.2 Possible Configuration Scenarios - FlexLine 954 Gauge
The following schematics represents the possible configuration
scenarios for connecting the 954 gauge interfacing to Rosemount
TankMaster and Enraf Engauge tool with all possible intermediate
devices.

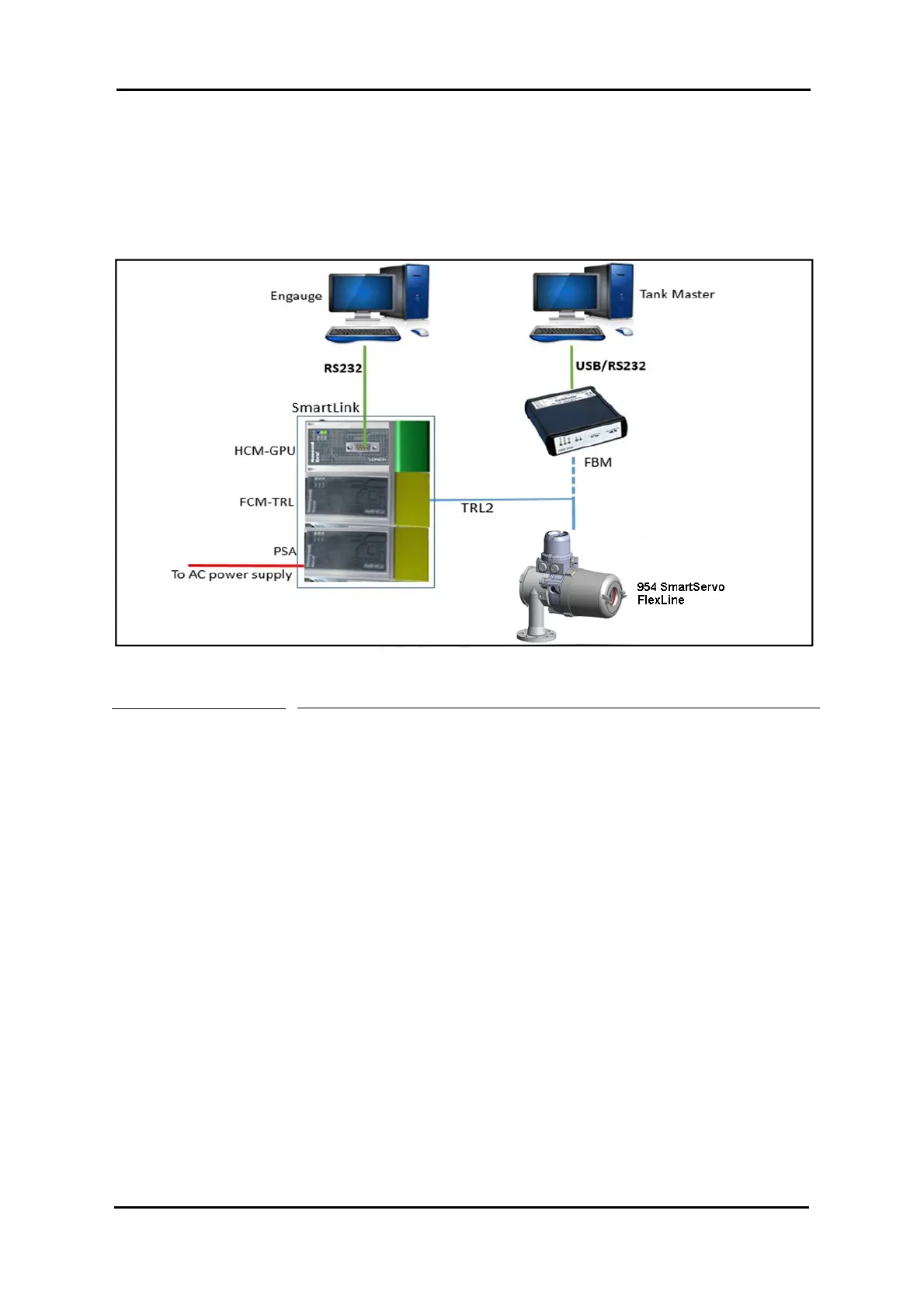

Figure 7-34 Configuration Scenario 1
NOTE: Configuration path: Engauge > SmartLink > Gauge
Communication path: TankMaster > FBM > Gauge
