The [function list] screen (see Figure 5-13) displays all configurable
entities of a function.
The actual entity value is also visible.
You can navigate through the board list by using the up or down
button. A function can be selected by simultaneously pressing the left
+ right button. You can return to the [board list] screen by pressing the left
button.

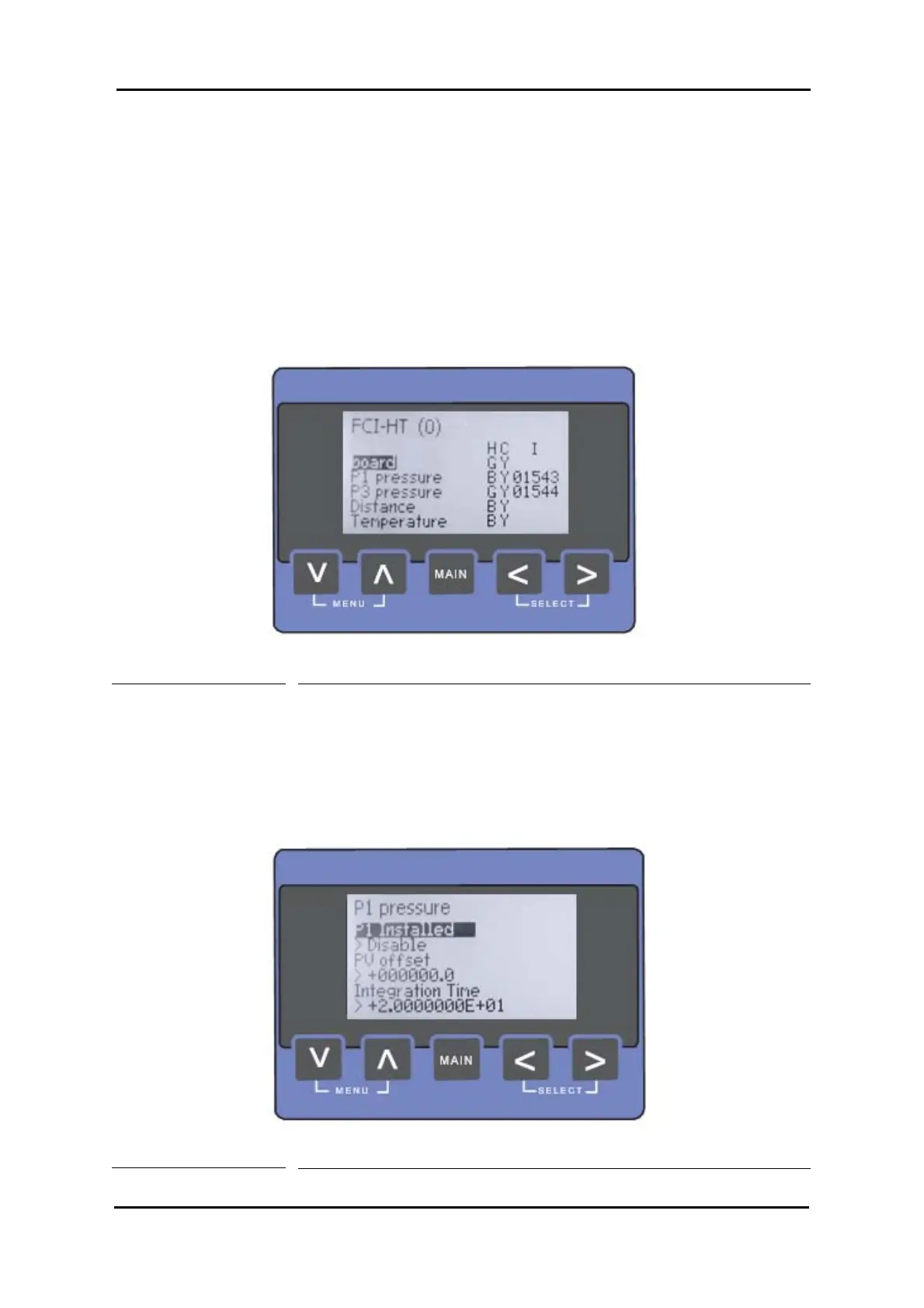

Figure 5-13
The function list screen (commissioning)
On selection of an available function, the [entity list] screen is presented
(see Figure 5-14). You can navigate through the entity list by using the
up or down button. An entity can be selected by simultaneously
pressing the left + right button. You can return to the [function list] screen
by pressing the left button.
Figure 5-14 The entity list screen
