SYSTEM ARCHITECTURE
Part No.: 4417340 Revision 1 Service Manual 25
954 SmartServo FlexLine
4.4 HART SmartView Display
General
The HART SmartView is used to set and control most of the FlexConn
module settings

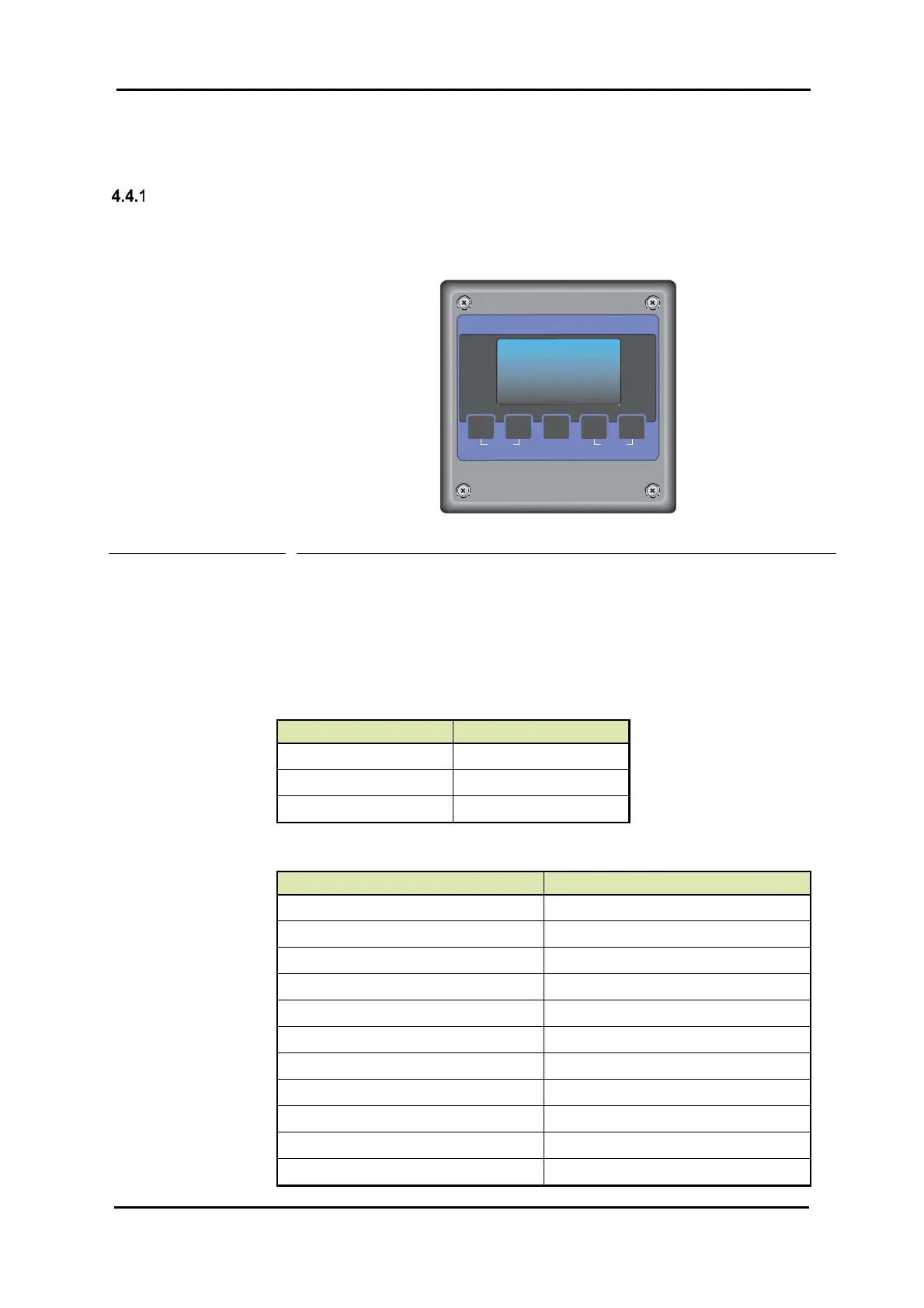

Figure 4-5
An impression of the HART SmartView
For each sensor and digital I/O function implemented on a FlexConn
module, a Primary Value screen is available on the HART SmartView
display.
In the left bottom quarter of the display, the Primary Value’s “Health”
status is displayed.
Status Display Text
Good
Uncertain uncertain
Bad bad
Below the Status field, the Status category is displayed:
Status Category Display Text
actual
manual manual
last valid last valid
stored stored
instrument instrument
environment environment
general hardware fail hardware
general firmware fail software
general commissioning fail commission
general calibration fail calibration
general operational fail operational
