MAINTENANCE
Part No.: 4417340 Revision 1 Service Manual 259
954 SmartServo FlexLine
The balance test results in several quality indicators that can be viewed
in Engauge and partly on the SmartView.
Entity name Entity name (SmartView) Description
[Balance test result
unbalance]
[Drum unbalance [kg]]
(Product level)
The drum unbalance should be within 3
grams. When the drum unbalance is more,
check for contamination of the drum. If the
unbalance is still more than 3 grams replace
the drum bearings (refer to section 9.1.2).
[Balance test result
average weight]
[Avg meas weight [kg]]
(Product level)
Refer to section 9.1.2 when the displacer’s
weight differs more than 3 g from the value in
entity [Displacer weight].
[Balance test result
maximum weight]
[Max unbal weight [kg]]
(Product level)
[Balance test result
minimum weight]
[Min unbal weight [kg]]
(Product level)
[Balance test result
average frequency]
[Avg meas freq [kg]]
(Product level)
[Measured bearing
status]
- Refer to section 9.1.1
The result of the balance test can also be viewed graphically by the
diagram viewer in Engauge (Servo Unbalance Diagram).

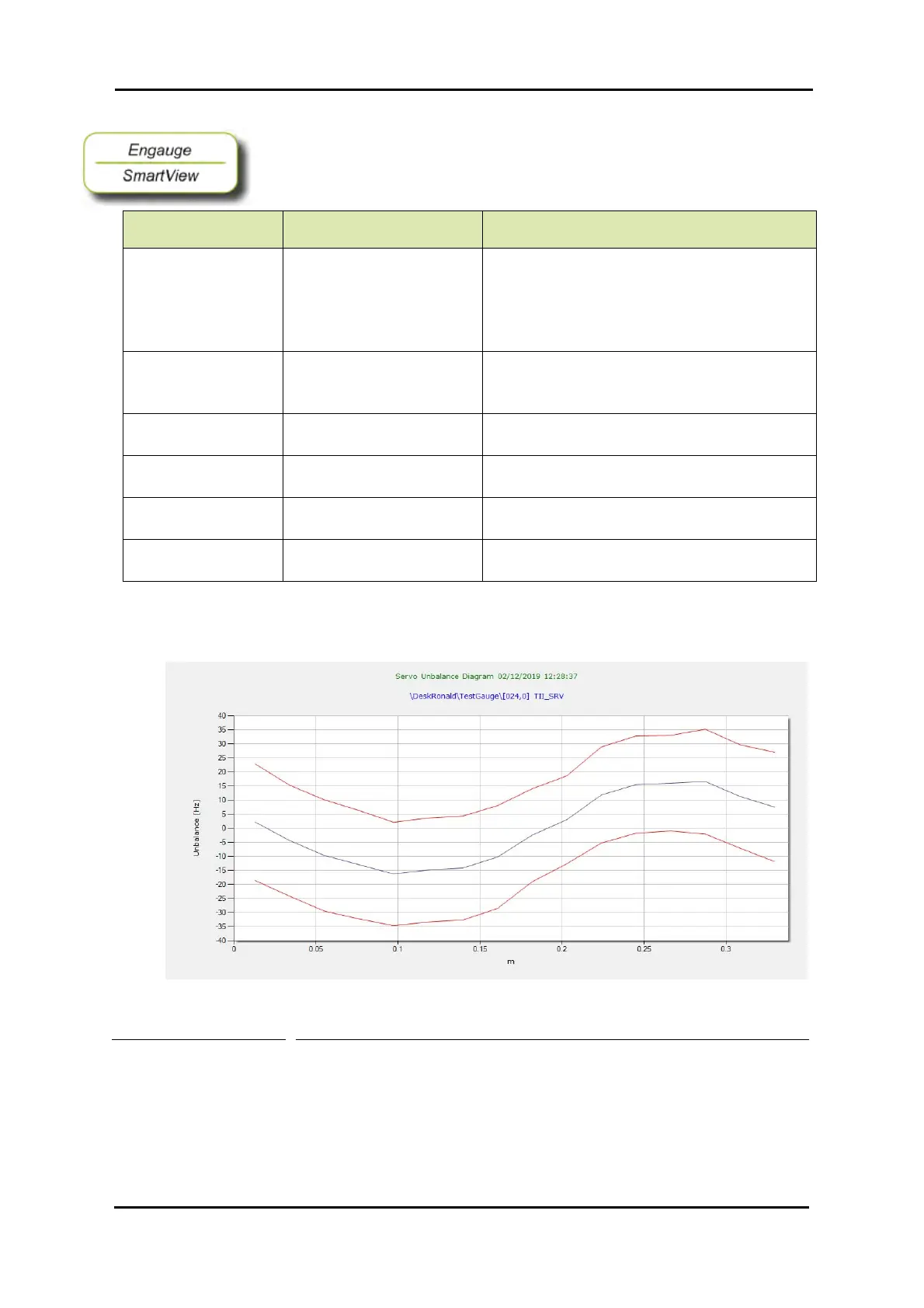

Figure 9-1 Example of a smooth servo unbalance diagram (16 points)
Figure 9-1 shows an example of a balance test diagram of 16 points.
The blue line shows the actual unbalance table in [Hz], while the red
lines show the measured hysteresis.
