COMMISSIONING
172 Service Manual Part No.: 4417340 Revision 1
954 SmartServo FlexLine
On the TAB sheet TRL/2 Modbus Master gauges modbus address
can be set (Refer to

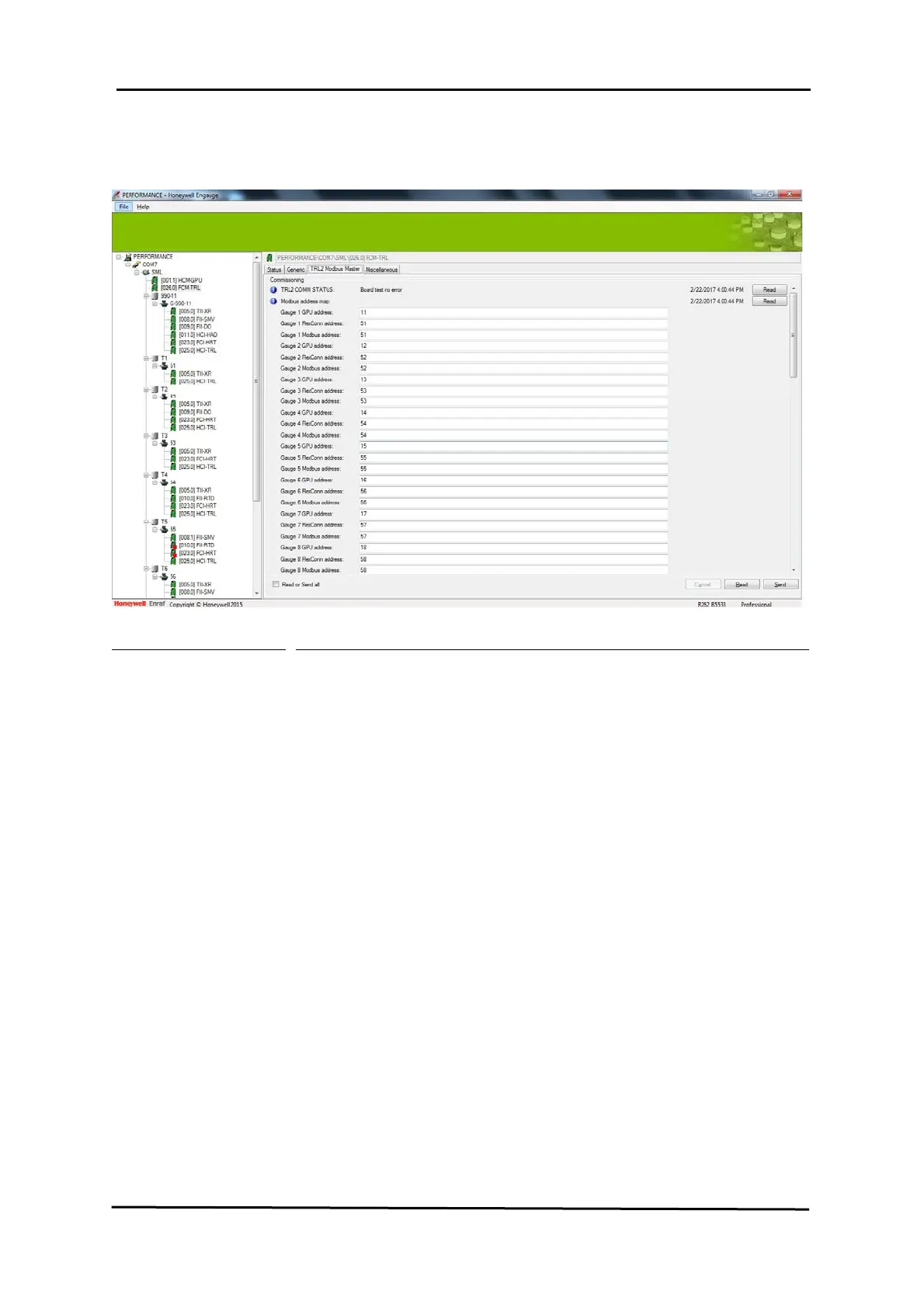

Figure 7-33 "FCM-TRL/2 Modbus Master").
Figure 7-33 FCM-TRL/2 Modbus Master
NOTE: You can enter maximum 20 gauges Modbus address for
commissioning at a time. If you want to commission more gauges,
delete the first 20 modbus address on the TRL2 Modbus page after
commissioning them and add next 20 gauges address and commission
them. All the gauges will be listed on the left pane after every
commissioning.
Identification:
An 8 character long name for the FCM- TRL/2 board.
GPU instrument start address:
GPU instrument stop address:
When one FCM- TRL/2 Module is used in the SmartLink, the default
start and stop addresses (0 and 99) can be used.
When two or three FCM-TRL/2 Modules are used in the SmartLink, a
division must be made of the full range; for instance:
l 99 for the second FCM- TRL/2 Module or
0 till 29 for the first FCM- TRL/2 Module
