SERVICE TOOLS
Part No.: 4417340 Revision 1 Service Manual 31
954 SmartServo FlexLine
HART SmartView Controls
The HART SmartView has 5 push buttons and an LCD-screen.
By using the menu, the 954 SmartServo FlexLine control
operations can be performed.

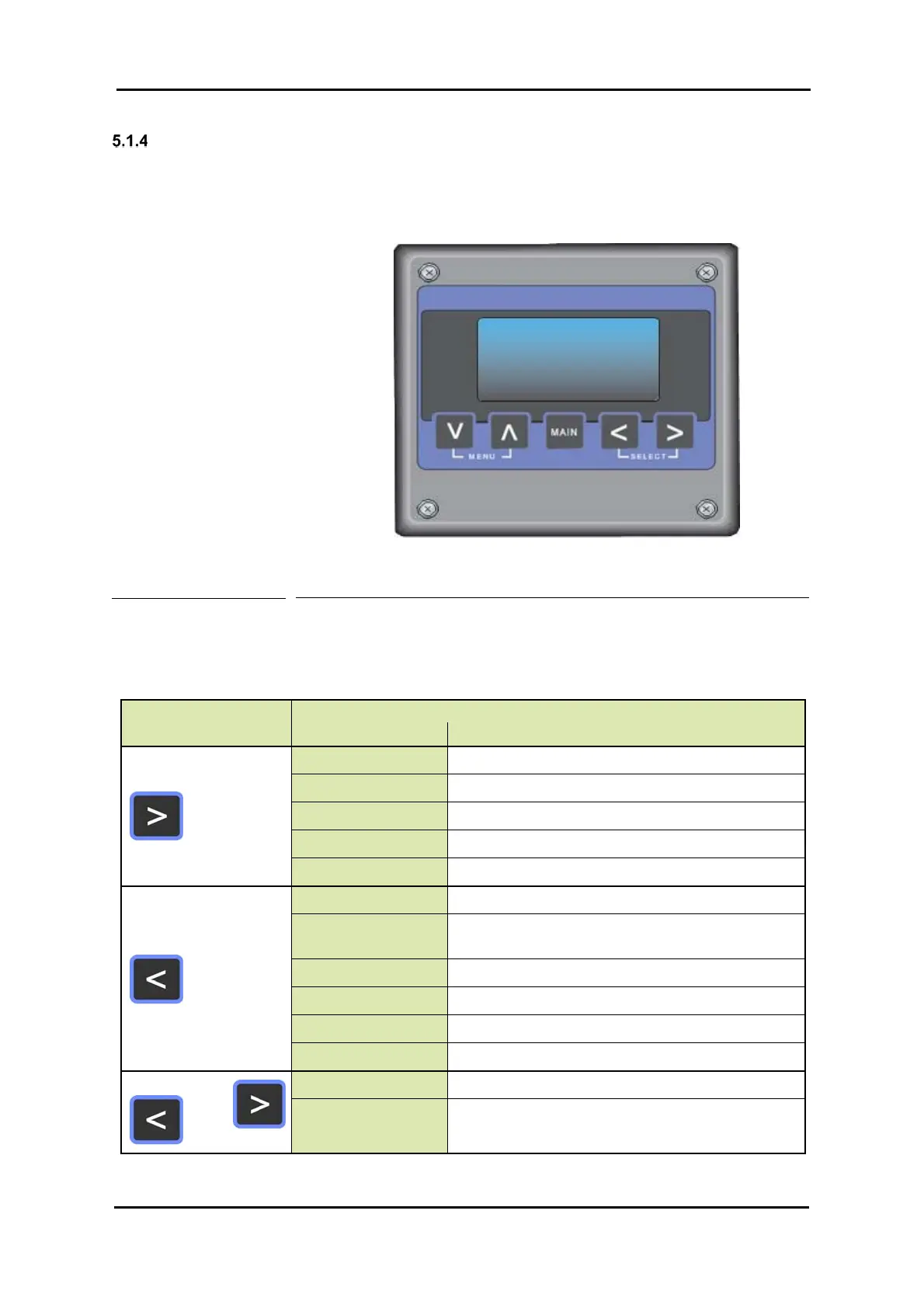

Figure 5-2 The HART SmartView controls
The following table provides the functions of the buttons available on
the HART SmartView:
Button Function
within menu ...
PV Go to next PV screen
Commissioning Move cursor 1 position to the right
Display contrast Increase contrast
Display settings Toggle between ON and OFF
HART address Toggle between address 7 and 8
PV Go to previous PV screen
Commissioning Leave current menu screen and go to higher-level
menu.
Imp
o
r
t
a
n
t:
Le
a
v
i
ng an e
d
it
screen th
i
s
w
a
yw
i
ll un
d
o
a
ll
Commands Leave current menu screen and go to higher-level
me
n
u
Display contrast Decrease contrast
Display settings Toggle between ON and OFF
HART address Toggle between address 7 and 8
+
Commissioning Confirm selected choice
Commands Confirm selected choice
