SERVICE TOOLS
30 Service Manual Part No.: 4417340 Revision 1
954 SmartServo FlexLine
5 SERVICE TOOLS
5.1 HART SmartView
General
The HART SmartView is the basic tool in which you can communicate
with the SmartServo FlexLine modules.
Open keyboard contacts may be dangerous in an explosion-hazardous
environment. The HART SmartView is built up as a totally shielded
explosion-safe tool.
HART SmartView Versions
The HART SmartView can be delivered in two versions:
 HART SmartView as a tank-side indicator (stand-alone)
 A portable HART SmartView

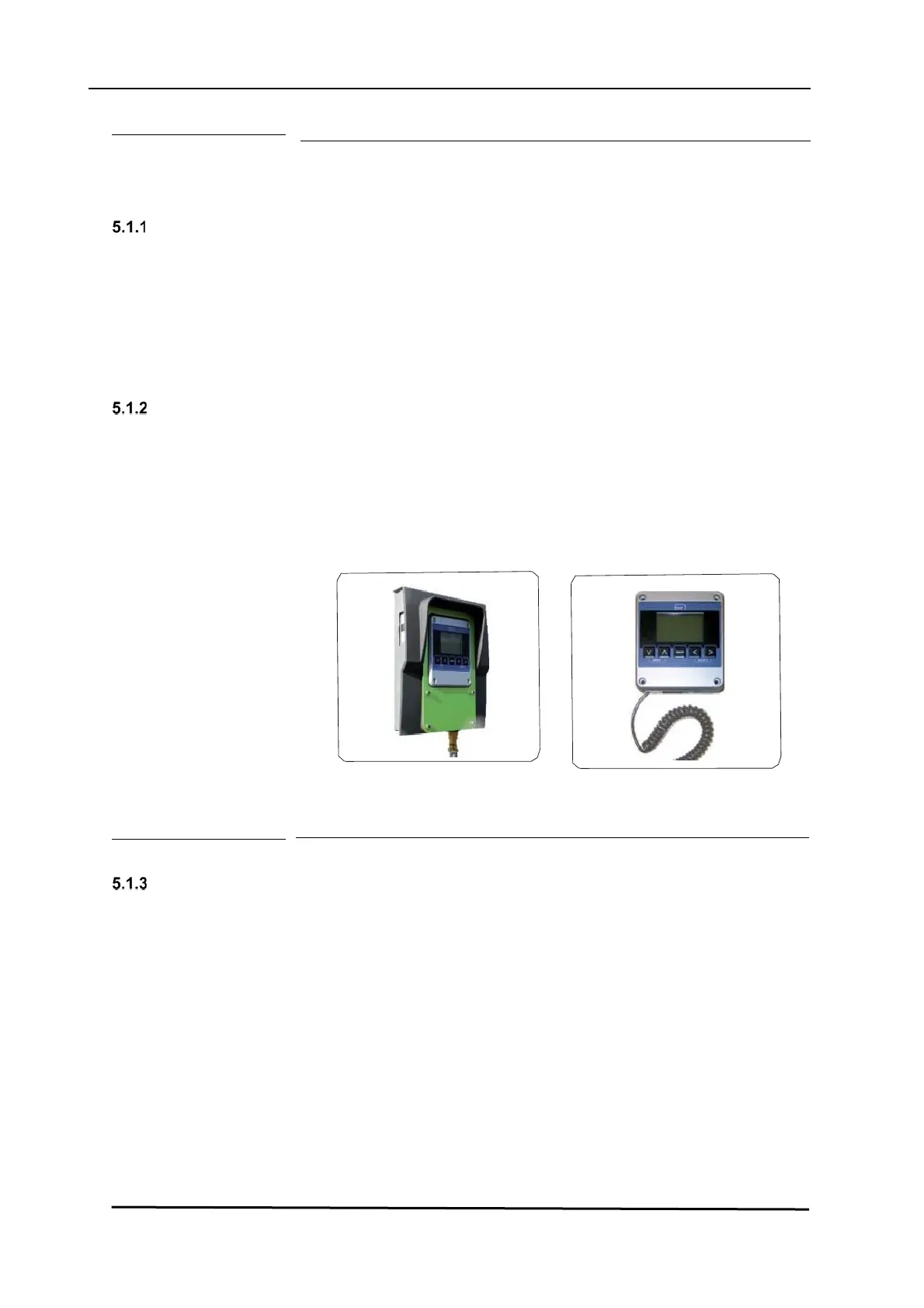

as a tank-side indicator as a portable
tool
Figure 5-1
The 2 different HART SmartView options
Connections
Within a hazardous environment, connecting or disconnecting electrical
equipment is dangerous, because of the sparking risks.
The portable HART SmartView however is designed such that it may
be
connected/disconnected
within a hazardous zone.
The fixed version HART SmartView (tank-side mounted) contains pre-
installed fixed connections.
