Honeywell FlexLine SmartServo 954 User Manual

COMMISSIONING
Part No.: 4417340 Revision 1 Service Manual 171
954 SmartServo FlexLine
The TAB sheet Generic gives information on the installed software
version, the board instance number and from there three commands
can be given (Refer to
Figure 7-32 "FCM-TRL/2 Specific").

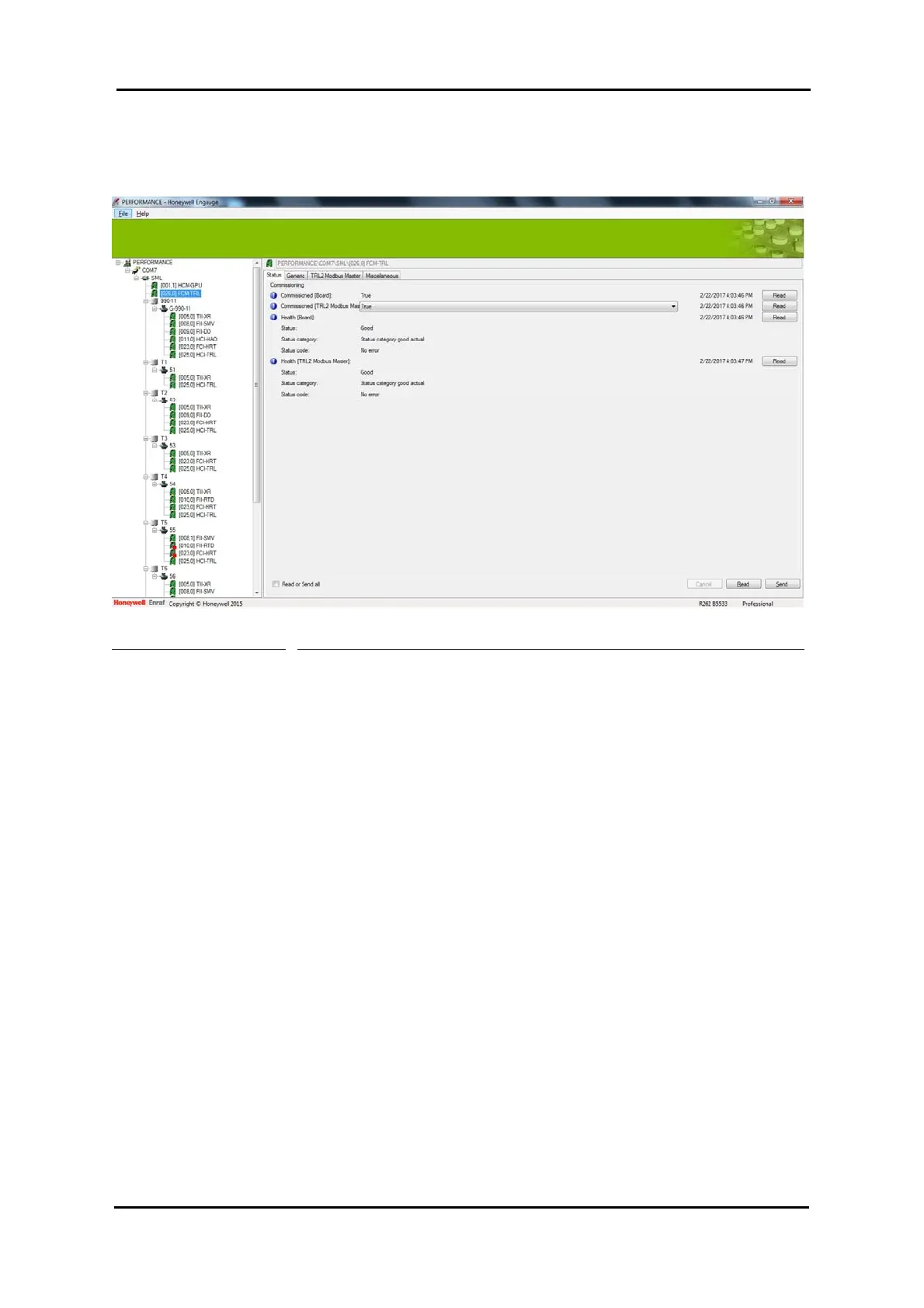

Figure 7-32 FCM-TRL/2 Specific
Reset device button:All modules of the SmartLink are reset
Reset board button:Only the FCM-
TRL/2 module is reset
Test LED’s button:The TxD and RxD led’s are switched on for 10
seconds. The selected FCM-TRL/2 Module is identified. This is useful
incase more than one FCM- TRL/2 Module is present.
Board Instance: If more than one FCM-
TRL/2 Module is present in the
SmartLink, each FCM- TRL/2 Module needs to have a unique board
instance number. Range: 0 till 9.
Software version:Current installed software version for the FCM- TRL/2
module.
