5.2 Engauge
Connecting the Engauge Service
Tool
The Engauge service tool is a computer application in which all
FlexConn module settings can be performed.
5.2.1.1 Wired Connections Situation
Connecting the serial COM-port of a computer or a laptop through an
RS-232 (or RS-485) transmission line to either a Communication
Interface Unit (CIU) or a SmartLink, enables the control of a 954
SmartServo FlexLine system. (Figure 5-18)

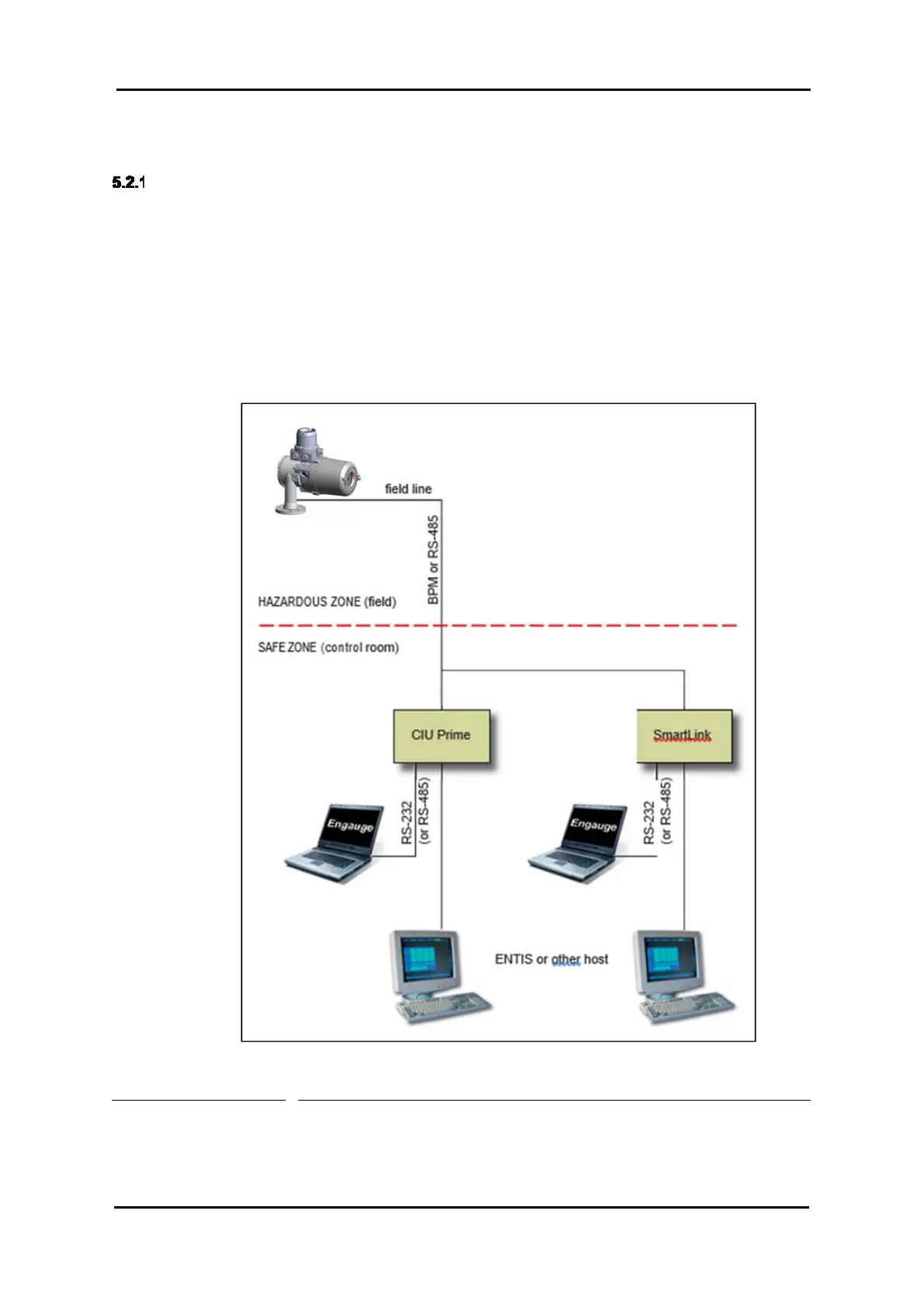

Figure 5-18 Connecting the Engauge service tool - wired connections
