Level Screens with different unit configured

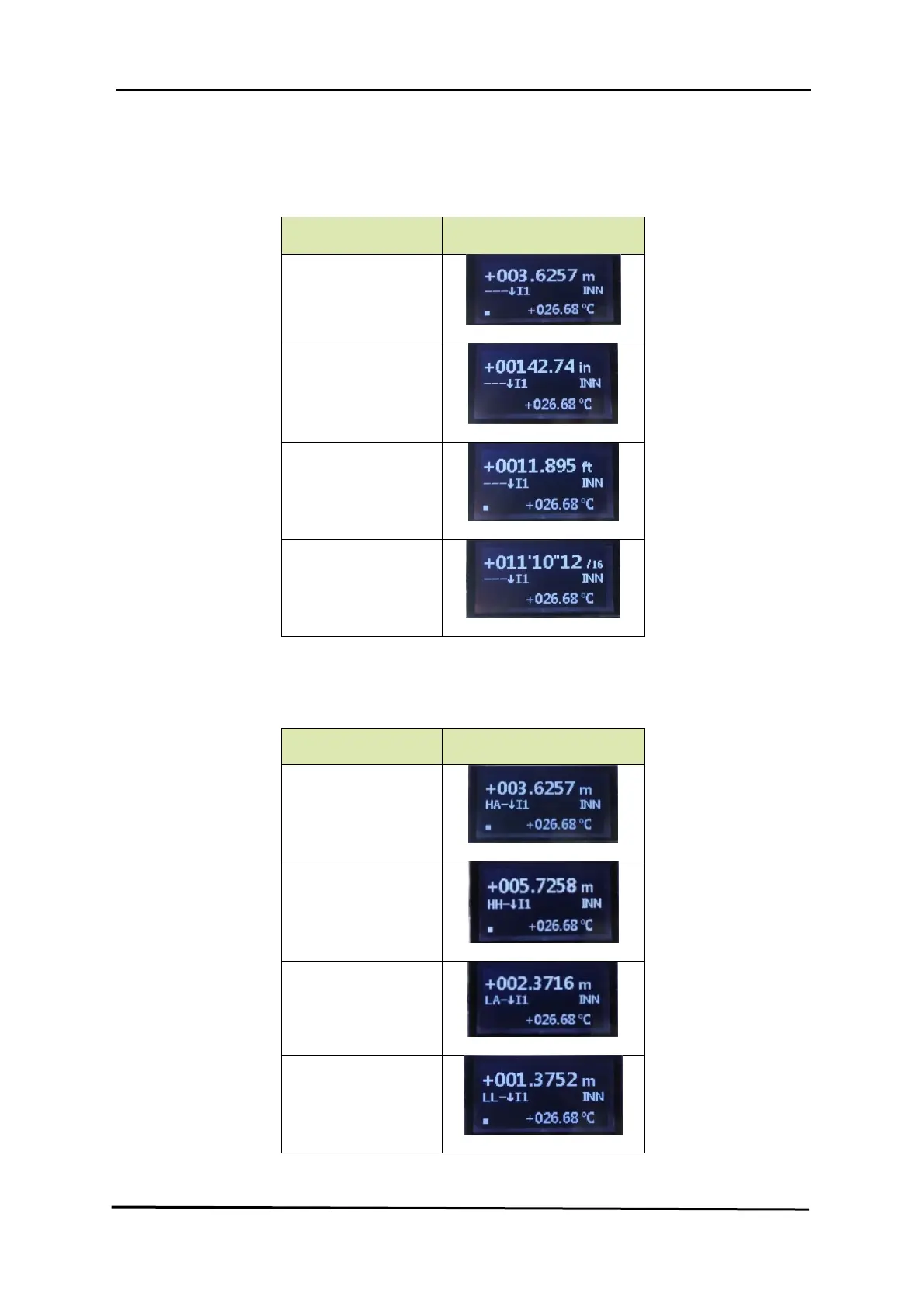

The below table shows various screens when a different unit is
configured using Engauge or HART SmartView.
Level Units Screen
Meter
Inches
Feet
Fraction
Level Screen with different Alarms
The below table shows how different alarms will be reported by the LCD
when it reads the alarms from the servo board.
Alarm Screen
High Alarm
High High Alarm
Low Alarm
Low Low Alarm
