SYSTEM ARCHITECTURE
28 Service Manual Part No.: 4417340 Revision 1
954 SmartServo FlexLine
4.5 Engauge Service Tool
The Engauge service tool is a computer application in which all the
FlexConn module settings can be performed.
Using the Engauge’s explorer, double-click on the module’s icon to
individually select each FlexConn module of the 954 SmartServo
FlexLine. The “board descriptor” is loaded which results in a screen
with “tab” pages. Select these tab pages, to set the specific module
details.

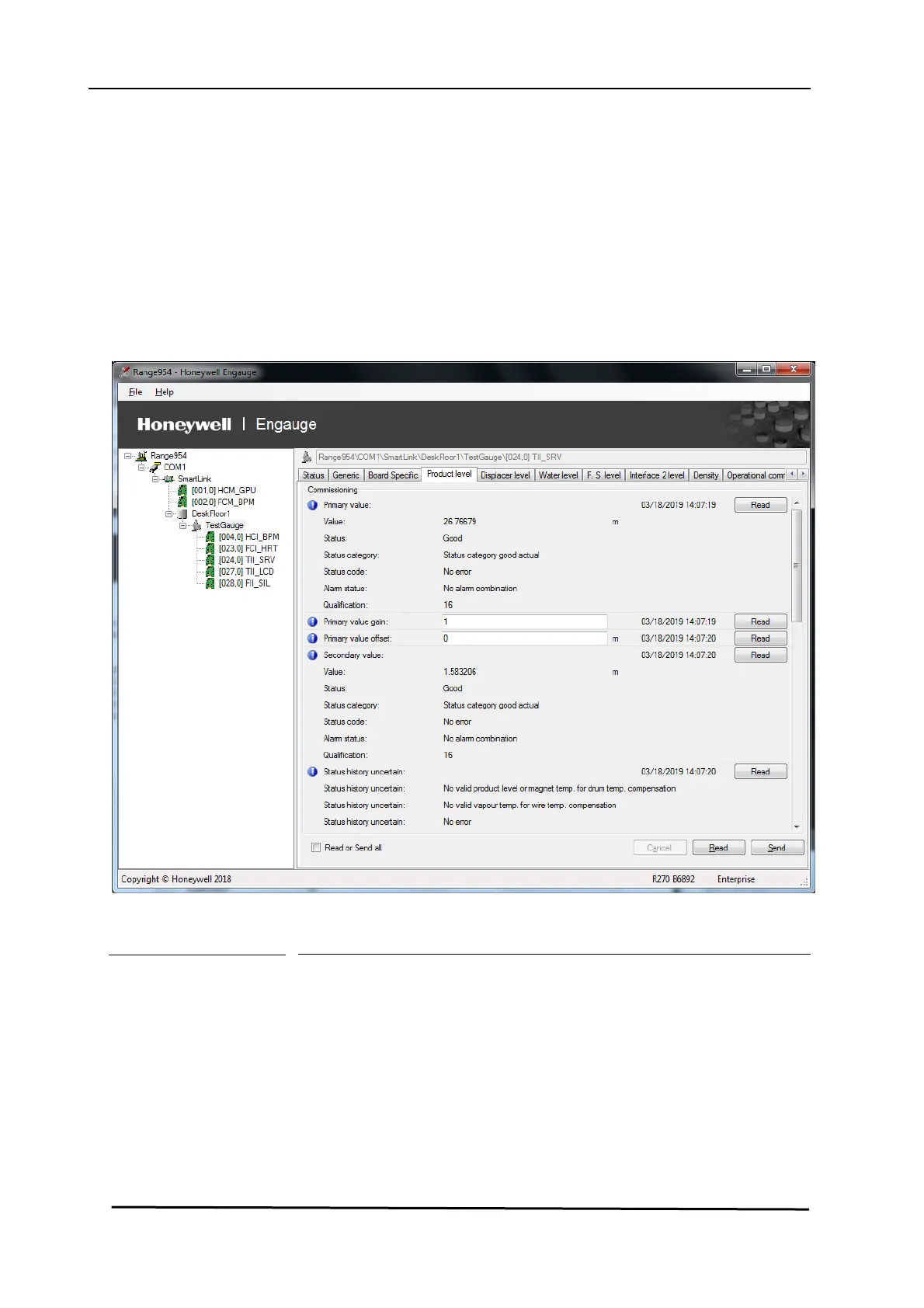

See Figure 4-6 for an example of an Engauge tool.
Figure 4-6
Example of an Engauge screen
