COMMISSIONING
Part No.: 4417340 Revision 1 Service Manual 199
954 SmartServo FlexLine

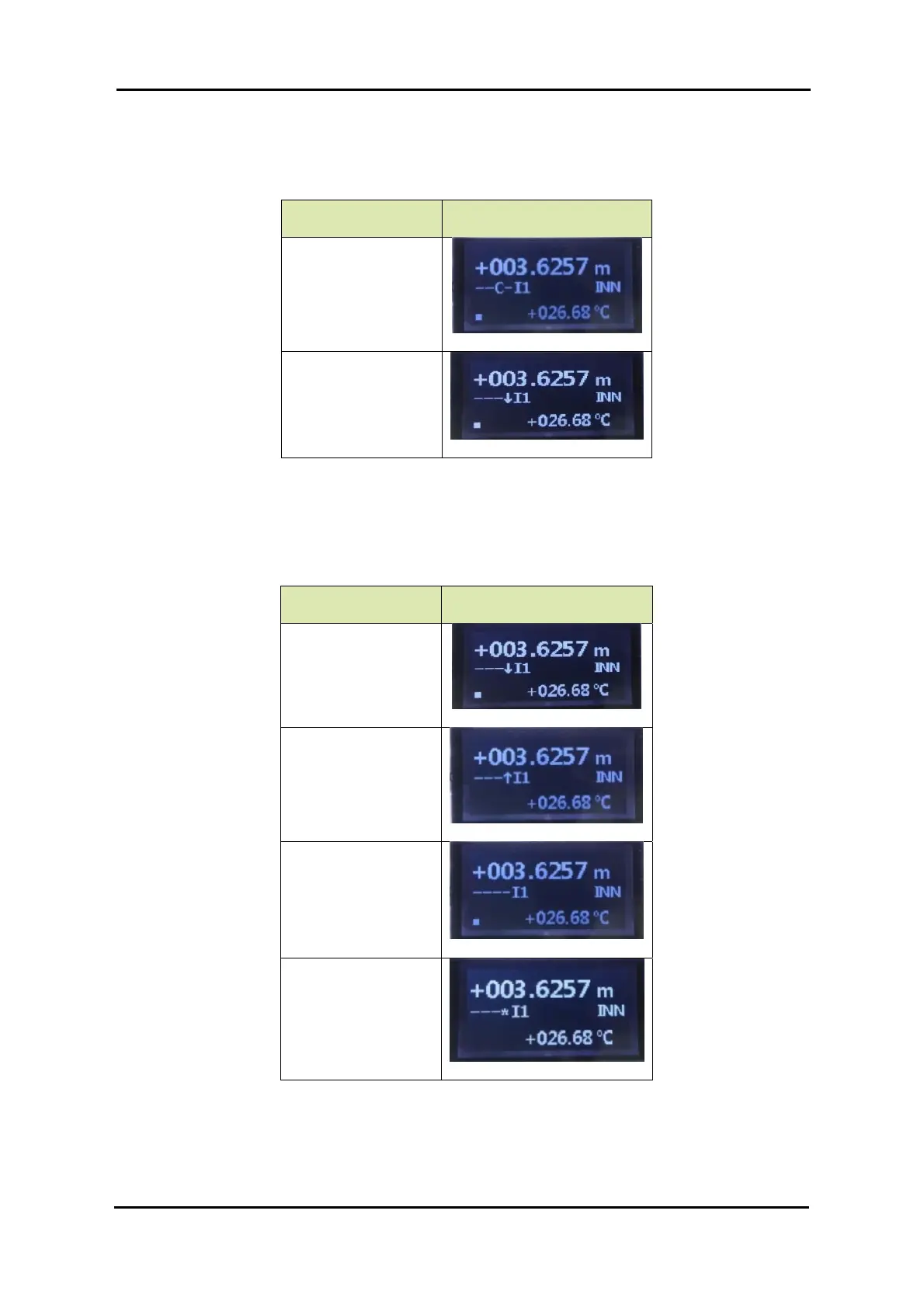

Level Screen with Limit Switch Status
The below table shows how the limit switch status is display on the LCD
when Limit switch is reached in the servo.
Motor Limit Switch Screen
Reached
Not Reached
Level Screen with different displacer status
The below table shows how the displacer movement is presented on the
LCD.
Displacer Screen
Down
Up
No movement
SAT Active
