SERVICE TOOLS
48 Service Manual Part No.: 4417340 Revision 1
954 SmartServo FlexLine
Using Engauge
After starting the Engauge application, first the specific transmission
address of the concerned 954 SmartServo FlexLine system must be set
correctly. Also, the transmission speed (baudrate) must be set.
After this is performed, Engauge’s explorer appears, and each
FlexConn module of the concerned SmartServoFlexLine system is
visible on the left panel. See Figure 5-19.
Double-click on the module’s icon on the left panel to edit each
individual 954 SmartServo FlexLine module. The “board descriptor” is
loaded and a screen with “tab” pages appears

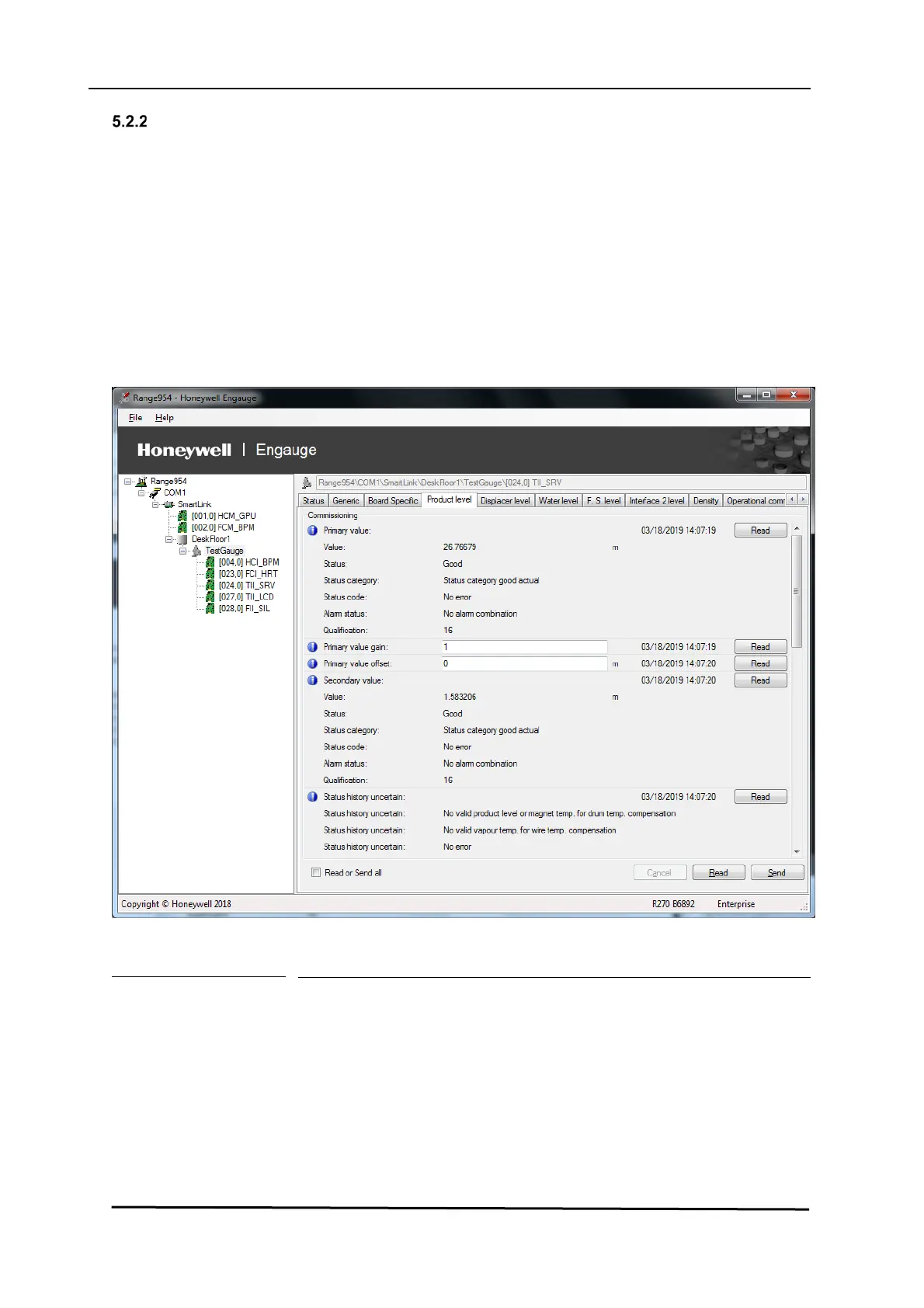

Figure 5-19 Example (1) of an Engauge screen
Browse through the tab pages to reveal the same information/
parameter settings which can be found using the HART SmartView, but
in a more user-friendly way. However, some settings or commands can
only be executed by Engauge. For example, executing an Alarm
simulation test is only available through Engauge.
