5.1.5.1.8 Primary Value Screen
The [Primary Value] screen (PV-screen), displayed in Figure 5-7 depicts
information about data measured by a sensor, or information about
the status of a digital I/O. See table Table 5-2.

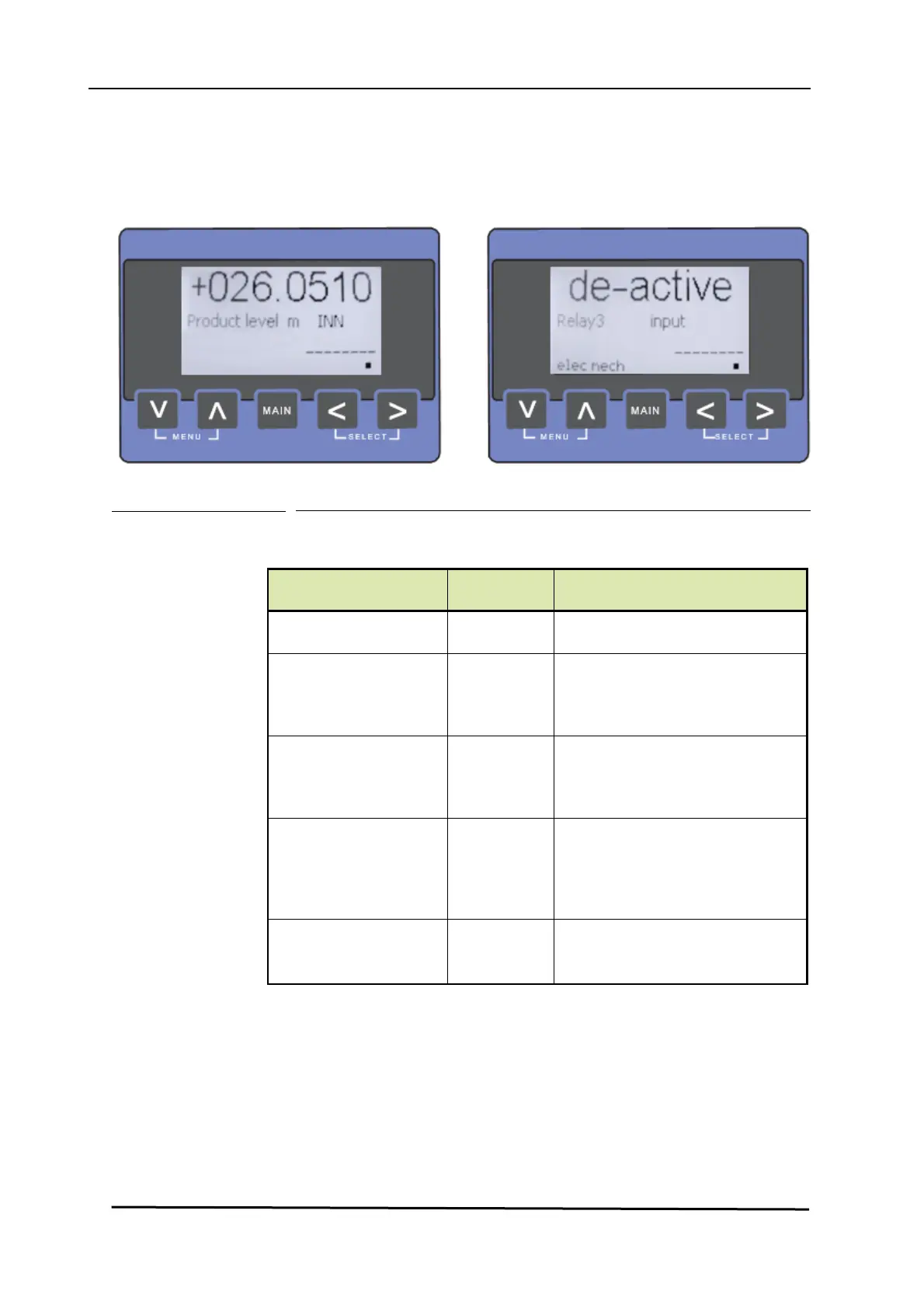

Figure 5-7 PV-screen examples (left: level status, right: digital I/O status)
Data Field
Max.
Size
[characters]
Description
Primary Value 9 The measured value, for example,
+025.1277
PV identification 13 Quantity name, for example,
• Product level
• Product temperature
• P1 pressure
PV units 5 Quantity unit, for example
• m
• kg/m
3
• kPa
PV type 3 Type can be:
• INN (innage)
• ULL (ullage)
• REL (relative)
• ABS (absolute)
PV health 9 Status of the Primary Value:
• UNCERTAIN
• BAD
To Next Page
