106

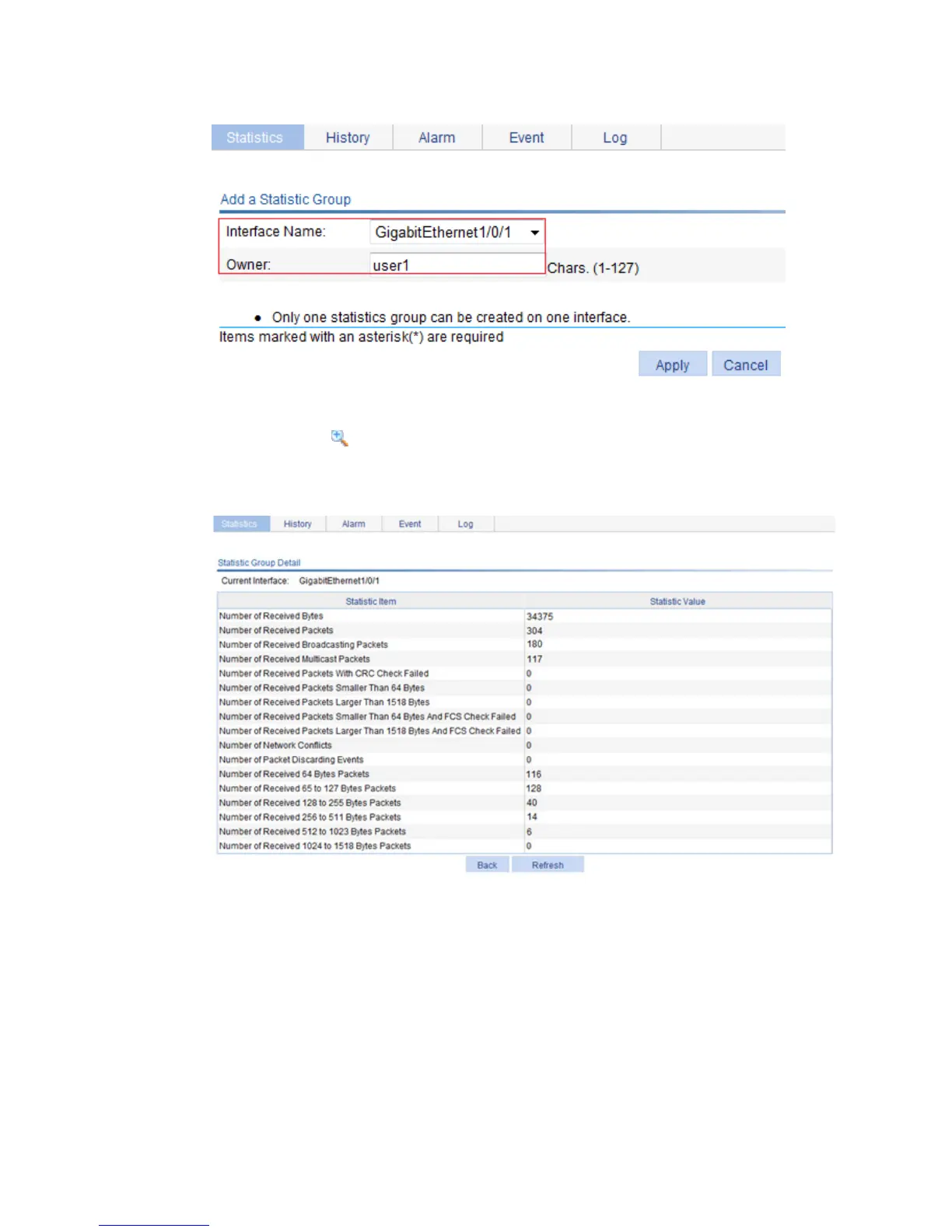

Figure 92 Adding a statistics entry
2. Display RMON statistics for GigabitEthernet 1/0/1:
a. Click the icon corresponding to GigabitEthernet 1/0/1.
b. Display this information as shown in Figure 93.
Figure 93 Displaying RMON statistics
3. Create an event to start logging after the event is triggered:
a. Click the Event tab.
b. Click Add.
The page in Figure 94 appears.
c. Type user1-rmon in the Owner field, select the box before Log, and click Apply.
d. The page displays the event entry, and you can see that the entry index of the new event is 1,
as shown in Figure 95.
