107

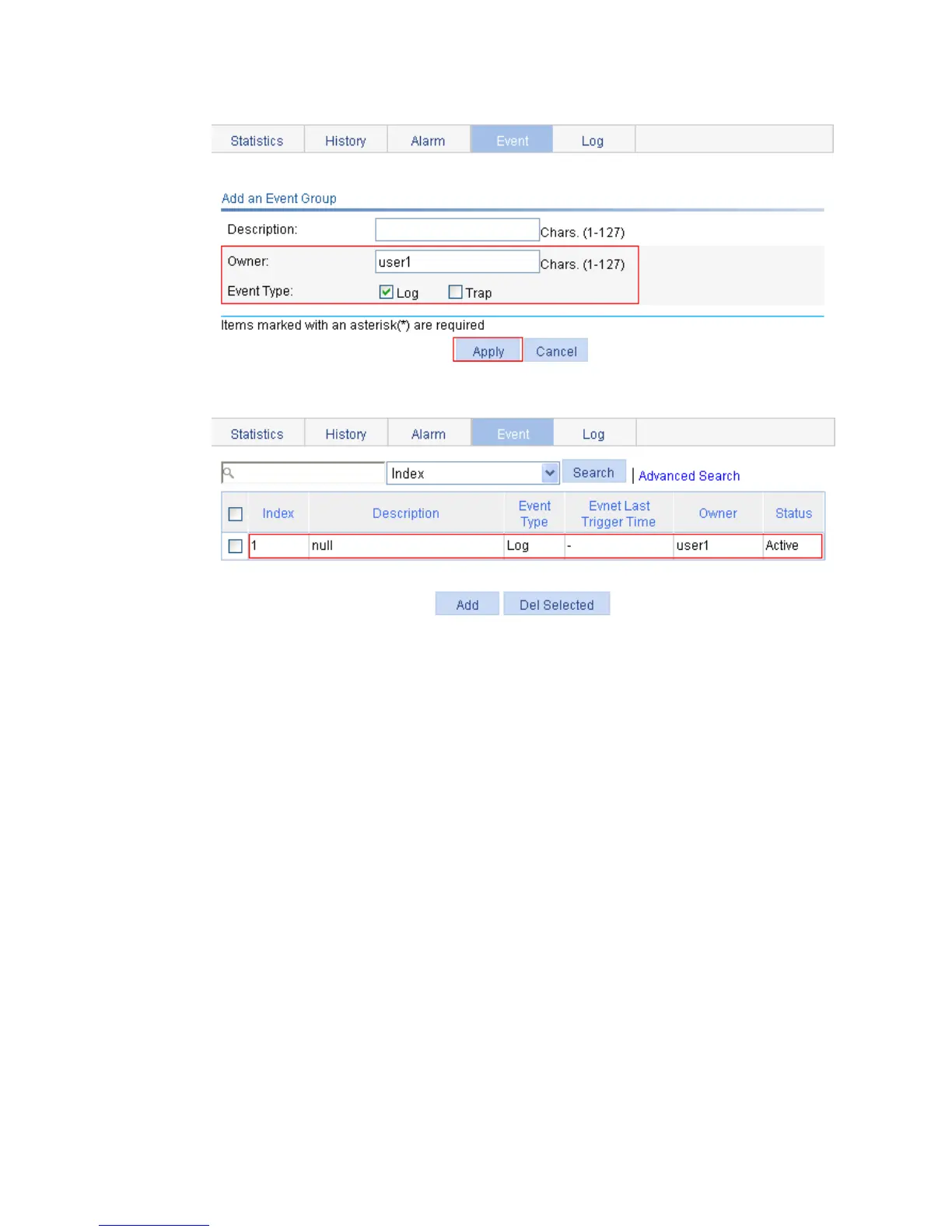

Figure 94 Configuring an event group
Figure 95 Displaying the index of an event entry
4. Configure an alarm group to sample received bytes on GigabitEthernet 1/0/1. When the
received bytes exceed the rising or falling threshold, logging is enabled:
a. Click the Alarm tab.
b. Click Add.
The page in Figure 96 appears.
c. Select Number of Received Bytes from the Static Item list, select GigabitEthernet1/0/1 from the
Interface Name list, enter 10 in the Interval field, select Delta from the Simple Type list, enter
user1 in the Owner field, enter 1000 in the Rising Threshold field, select 1 from the Rising Event
list, enter 100 in the Falling Threshold field, select 1 from the Falling Event list, and click Apply.
