108

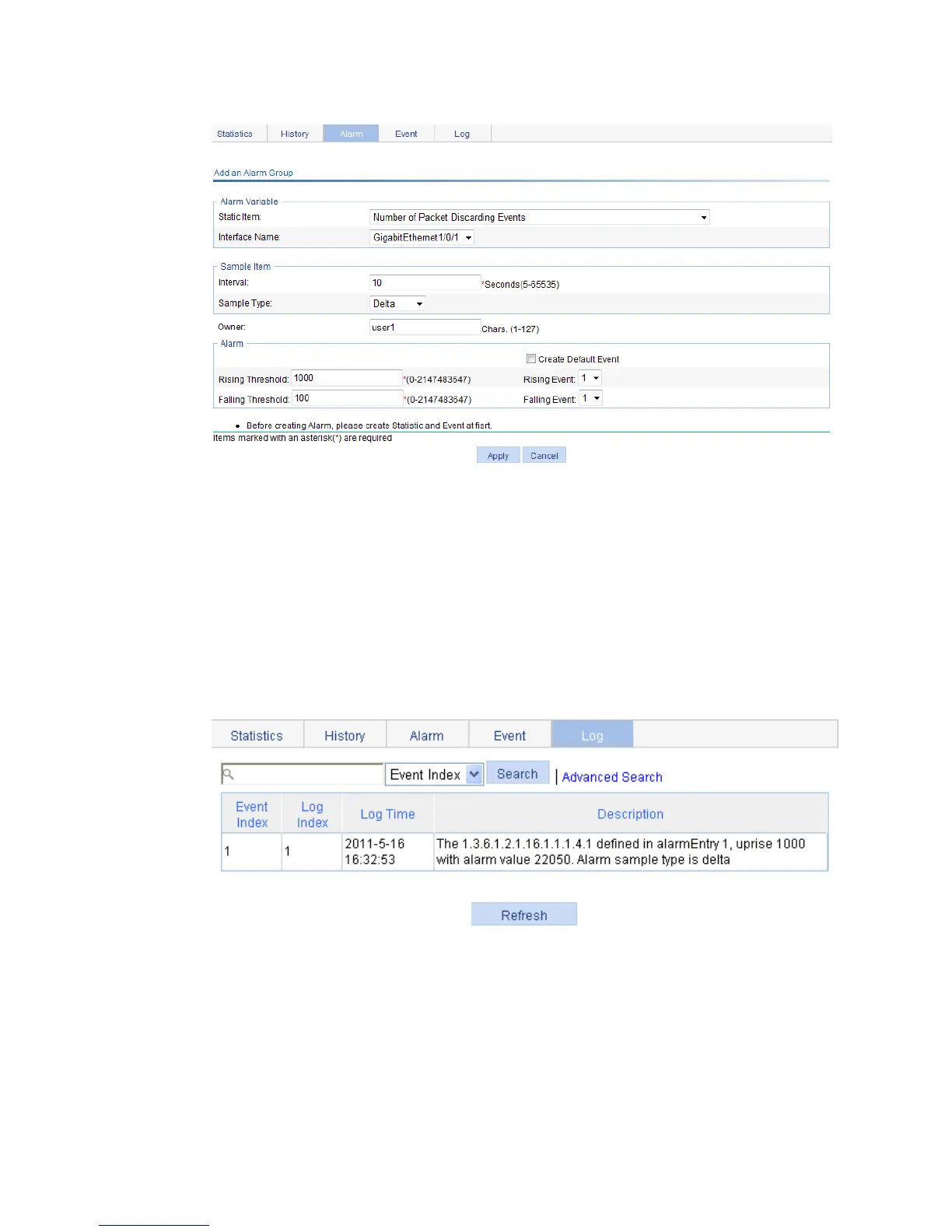

Figure 96 Configuring an alarm group
Verifying the configuration
After the above configuration, when the alarm event is triggered, you can display log information for
event 1 on the Web interface.
1. Select Device > RMON from the navigation tree.
2. Click the Log tab.
The log page appears. The log in this example indicates that event 1 generated one log, which
was triggered because the alarm value (22050) exceeded the rising threshold (1000). The
sampling type is absolute.
Figure 97 Log information for event 1
