128
2. Configure an SNMP view:
a. Click the View tab.
b. Click Add.
The page for creating an SNMP view appears.
c. Type view1 in the View Name field.
d. Click Apply.

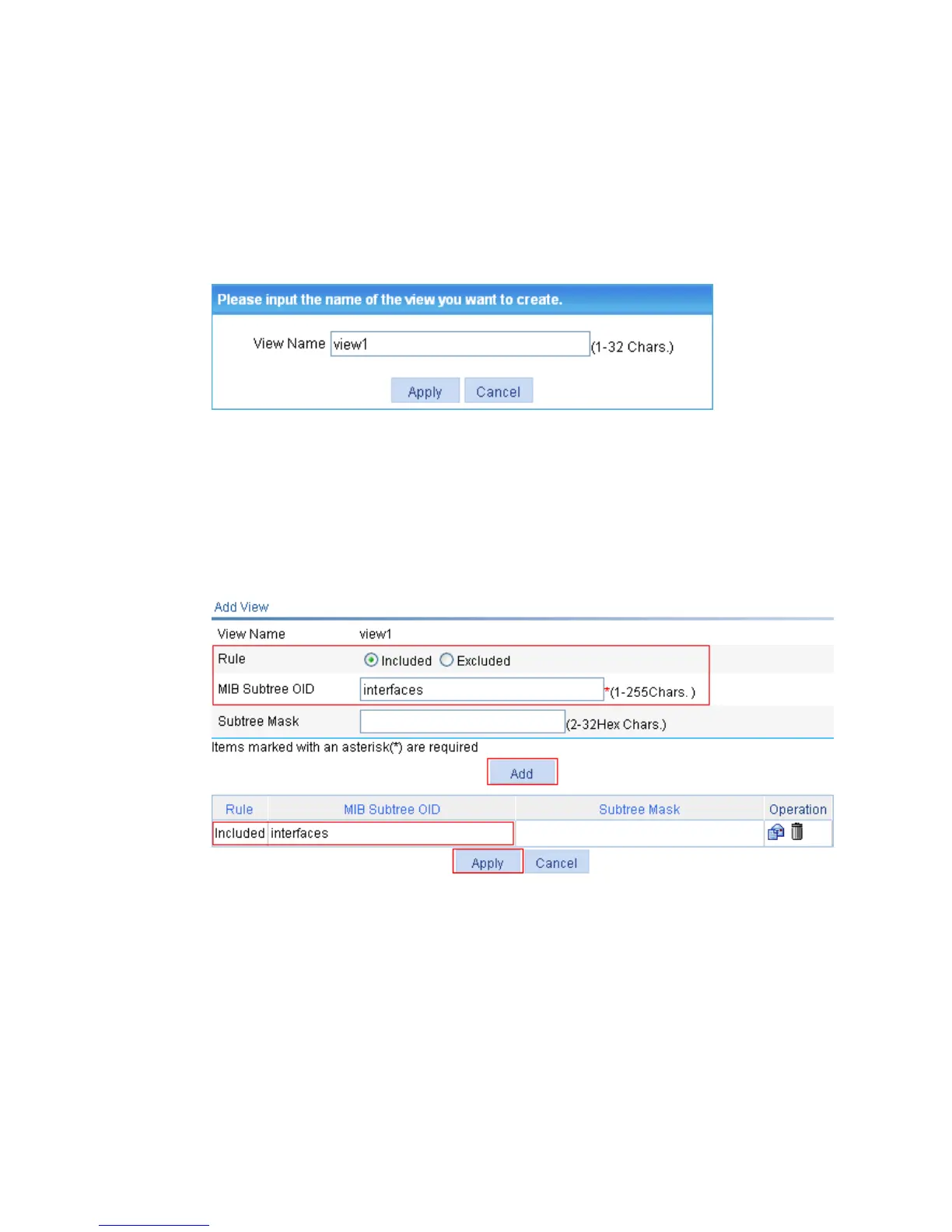

Figure 123 Creating an SNMP view (1)
e. On the page that appears, select the Included option, type the MIB subtree OID interfaces, and
click Add.
f. Click Apply.
A configuration progress dialog box appears.
g. Click Close after the configuration process is complete.
Figure 124 Creating an SNMP view (2)
3. Configure an SNMP group:
a. Click the Group tab.
b. Click Add.
The page in Figure 125 ap
pears.
c. Type group1 in the Group Name field, select view1 from the Read View list, select view1 from
the Write View list.
d. Click Apply.
