129

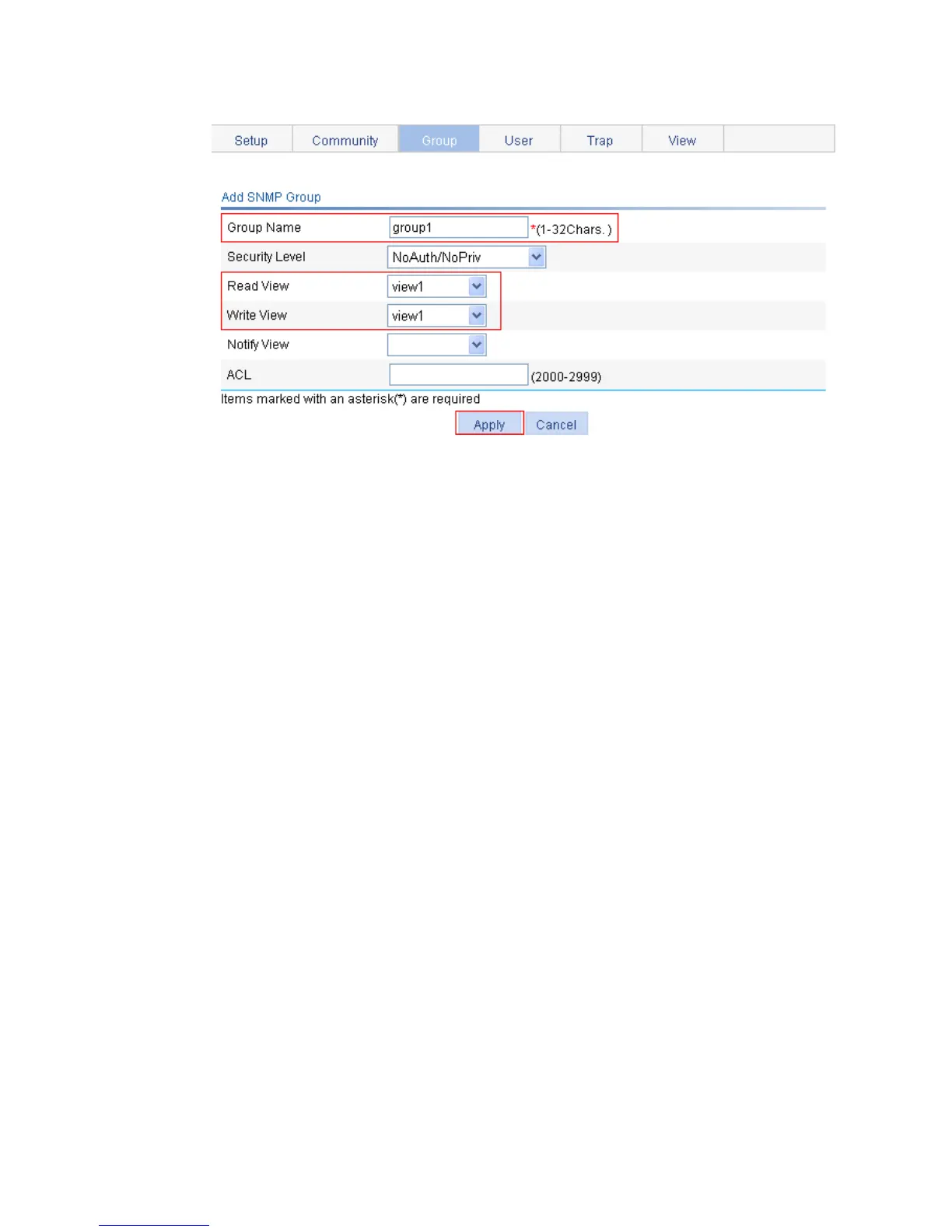

Figure 125 Creating an SNMP group
4. Configure an SNMP user:
a. Click the User tab.
b. Click Add.
The page in Figure 126 ap
pears.
c. Type user1 in the User Name field, select Auth/Priv from the Security Level list, select group1
from the Group Name list, select MD5 from the Authentication Mode list, type authkey in the
Authentication Password and Confirm Authentication Password fields, select DES56 from the
Privacy Mode list, and type prikey in the Privacy Password and Confirm Privacy Password
fields.
d. Click Apply.
