170

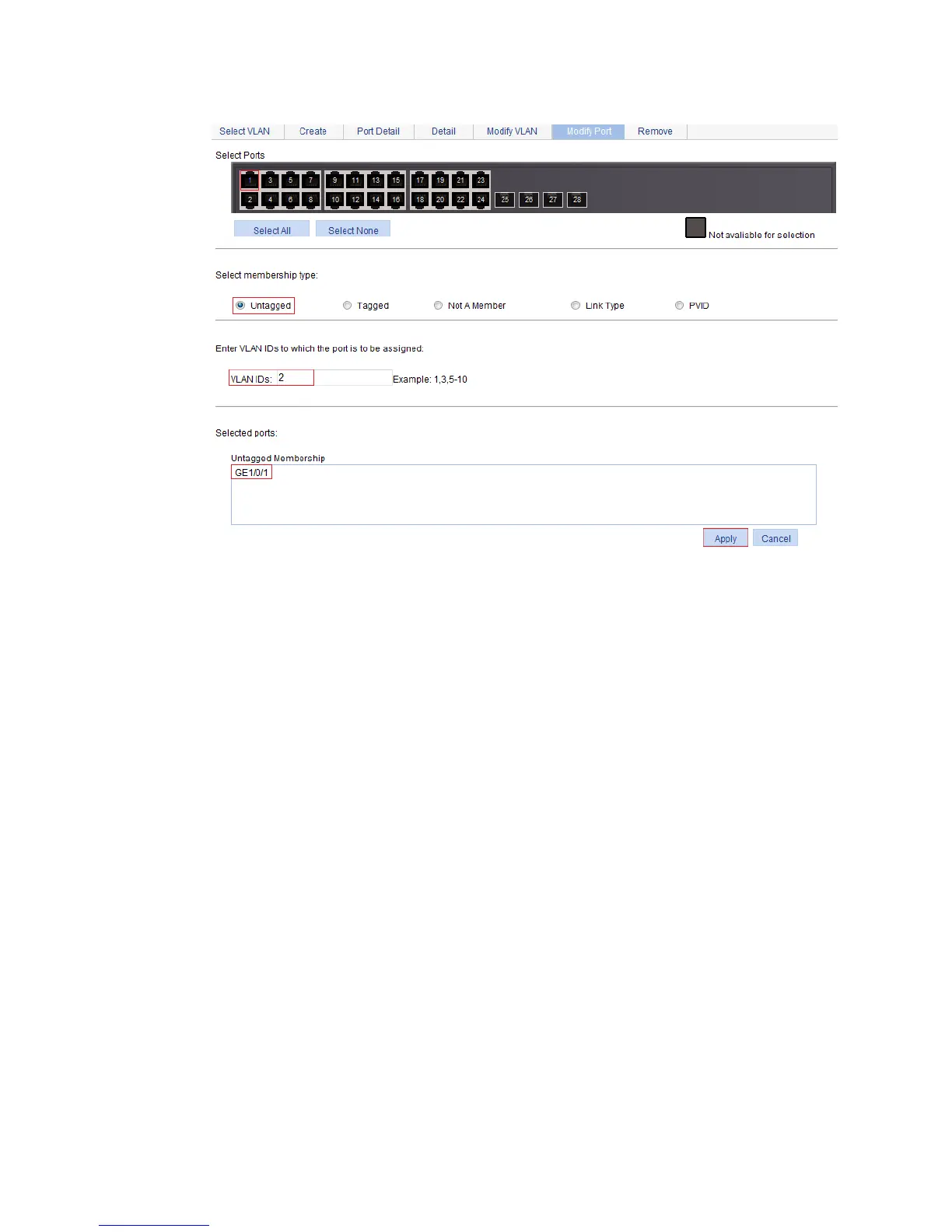

Figure 164 Assigning GigabitEthernet 1/0/1 to VLAN 2 as an untagged member
4. Configure voice VLAN on GigabitEthernet 1/0/1:
a. Select Network > Voice VLAN from the navigation tree.
b. Click the Port Setup tab.
c. Select Manual in the Voice VLAN port mode list.
d. Select Enable in the Voice VLAN port state list.
e. Enter 2 in the VLAN IDs field.
f. Select GigabitEthernet 1/0/1 on the chassis front panel.
g. Click Apply.
