289

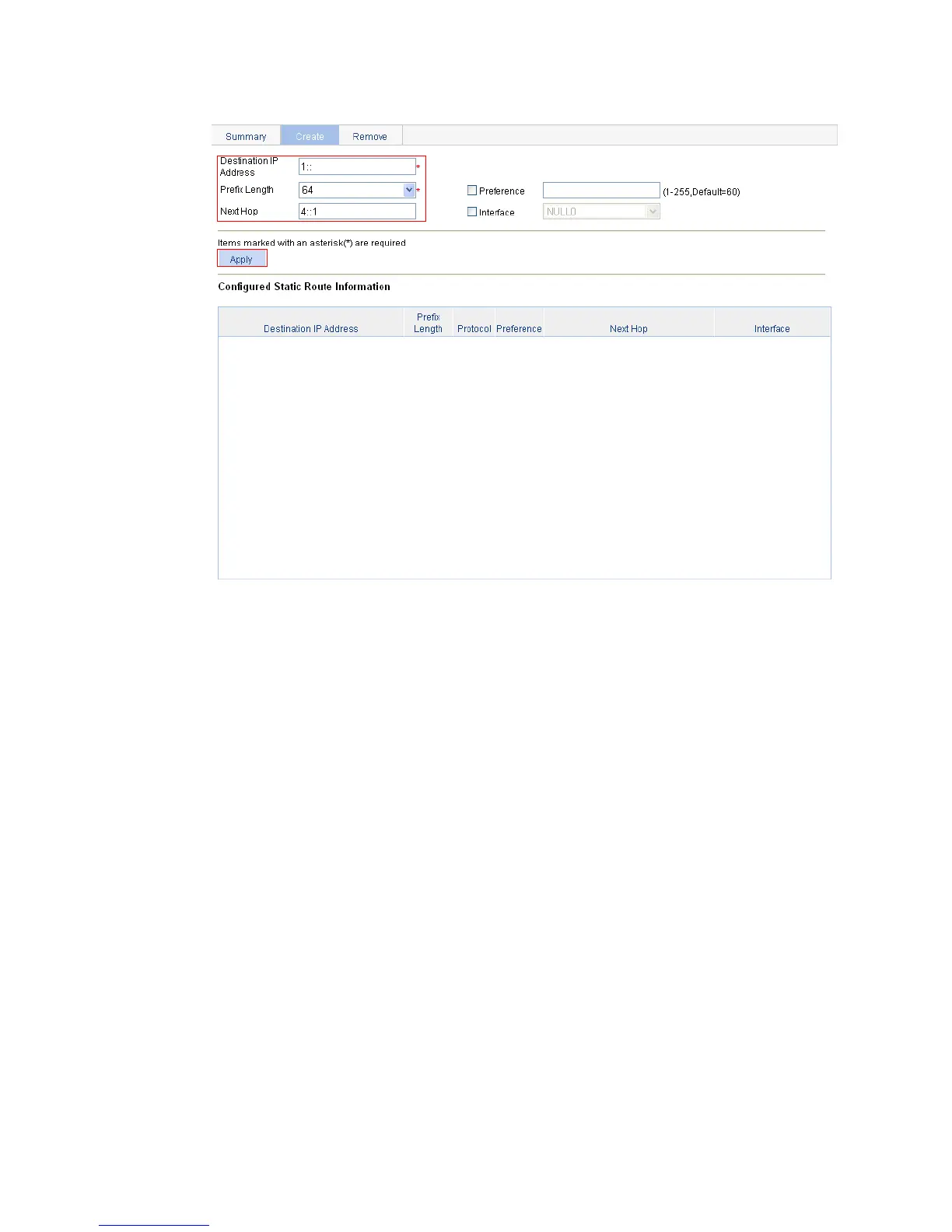

Figure 264 Configuring a static route
e. Enter 3:: for Destination IP Address, select 64 from the Prefix Length list, and enter 5::1 for Next
Hop.
f. Click Apply.
3. Configure a default route to Switch B on Switch C:
a. Select Network > IPv6 Routing from the navigation tree of Switch C.
b. Click the Create tab.
c. Enter :: for Destination IP Address, select 0 from the Prefix Length list, and enter 5::2 for Next
Hop.
d. Click Apply.
