HP 1920 Gigabit Ethernet Switch Series User Manual

412

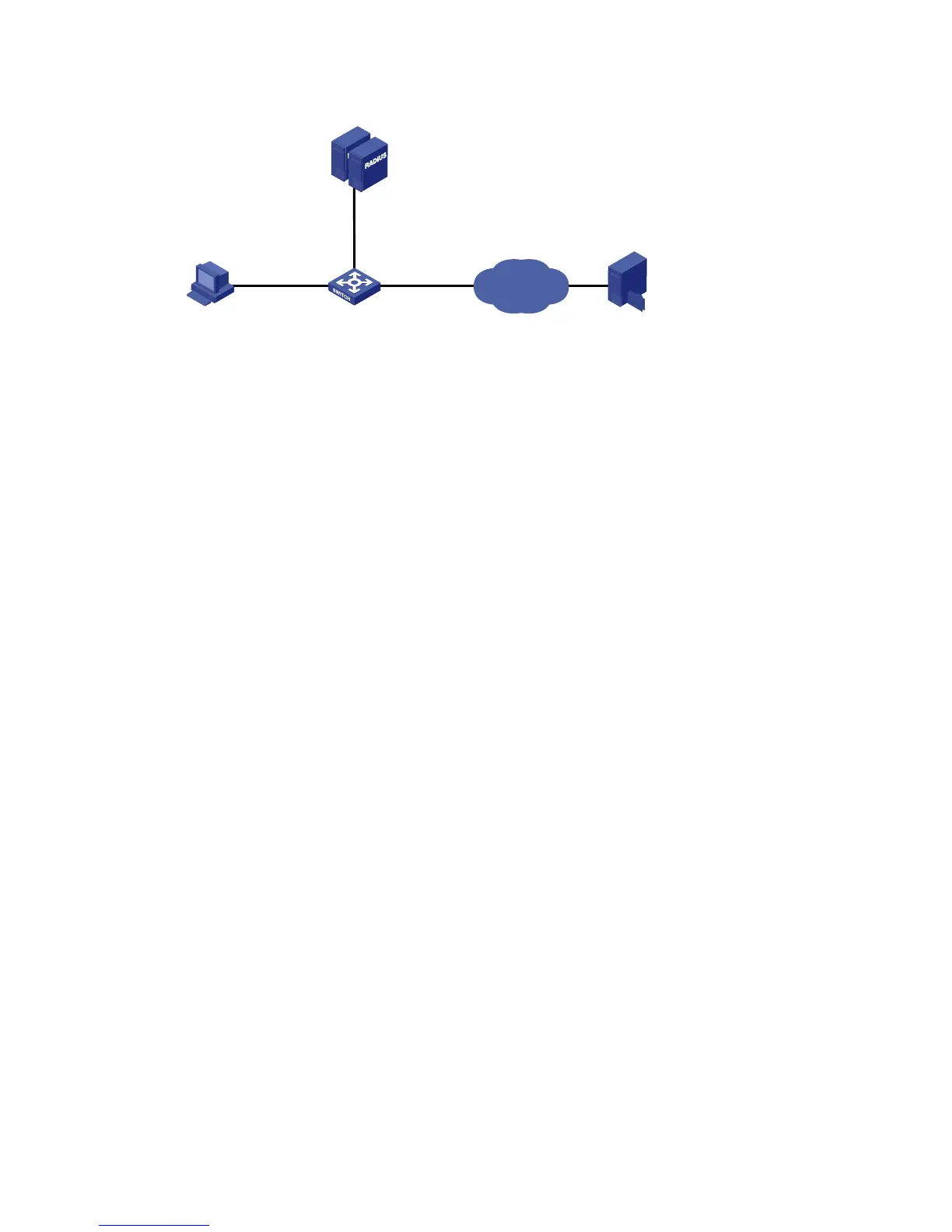

Figure 396 Network diagram
Configuring IP addresses
# Assign an IP address to each interface. Make sure the RADIUS servers, host, and switch can reach
each other. (Details not shown.)
Configuring the RADIUS servers
# Add a user account with the host MAC address unhyphenated as both the username and password,
and specify ACL 3000 as the authorization ACL for the user account. (Details not shown.)
For information about the RADIUS server configuration, see "Configuring RADIUS."
Configuring a RADIUS scheme for the switch
1. Create a RADIUS scheme:
a. From the navigation tree, select Authentication > RADIUS.
b. Click Add.
c. Enter the scheme name system.
d. Select the server type Extended.
e. Select Without domain name from the Username Format list.
f. Click Apply.
2. Configure the primary authentication server in the RADIUS scheme:
a. In the RADIUS Server Configuration area, click Add.
b. Configure the RADIUS authentication server:
− Select Primary Authentication from the Server Type list.
− Enter 10 .1.1.1 in the IP Address field, and enter the port number 1812.
− Enter expert in the Key field and the Confirm Key field.
c. Click Apply.
Internet
Switch
Host
192.168.1.10
GE1/0/1
FTP server
10.0.0.1
RADIUS servers
Auth:10.1.1.1
Acct:10.1.1.2
