417

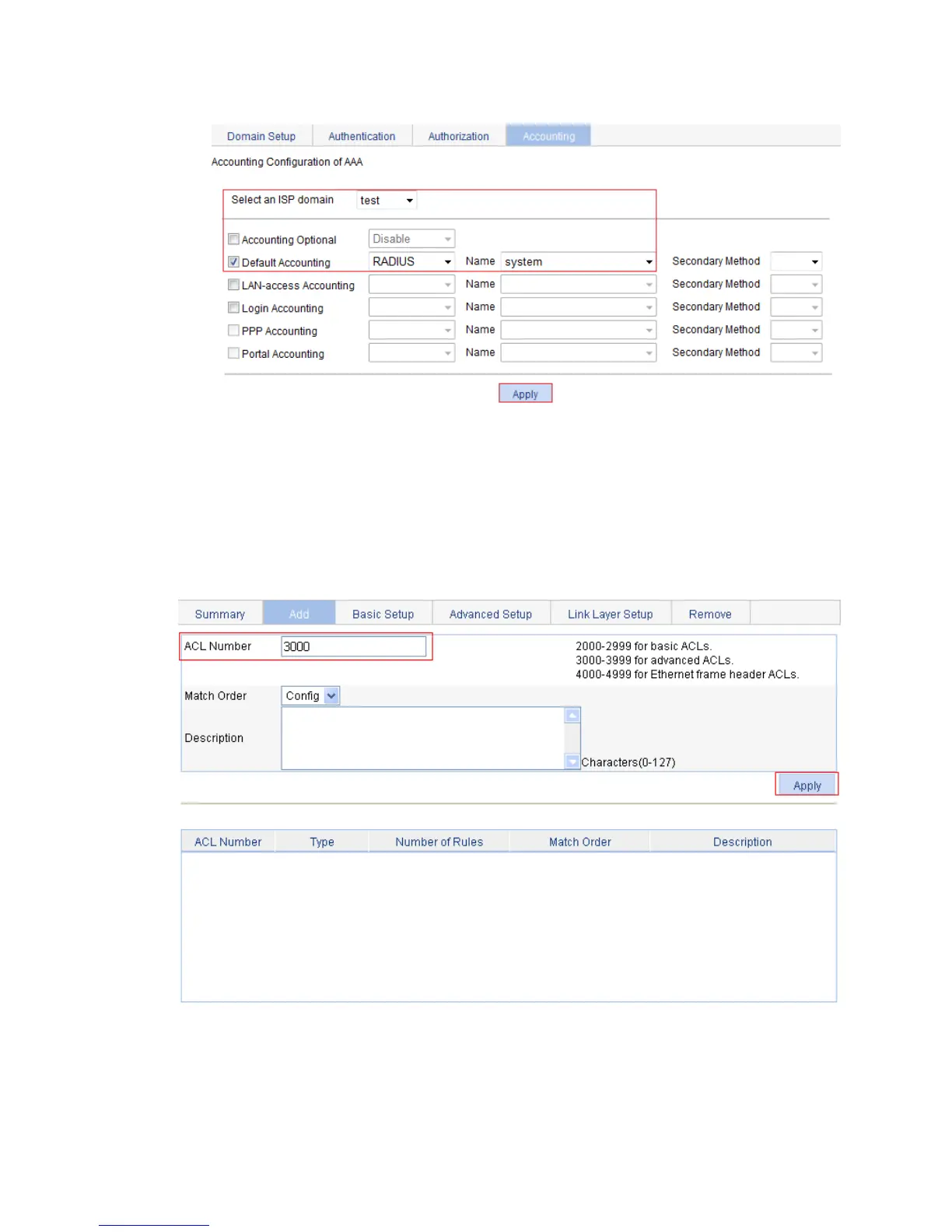

Figure 404 Configuring the accounting method for the ISP domain
e. After the configuration process is complete, click Close.
Configuring an ACL
1. From the navigation tree, select QoS > ACL IPv4.
2. Click the Add tab.
3. Enter the ACL number 3000, and then click Apply.
Figure 405 Adding ACL 3000
4. Click the Advanced Setup tab.
5. Configure the following parameters:
a. Select the ACL 3000.
b. Select Rule ID, and enter the rule ID 0.
