436

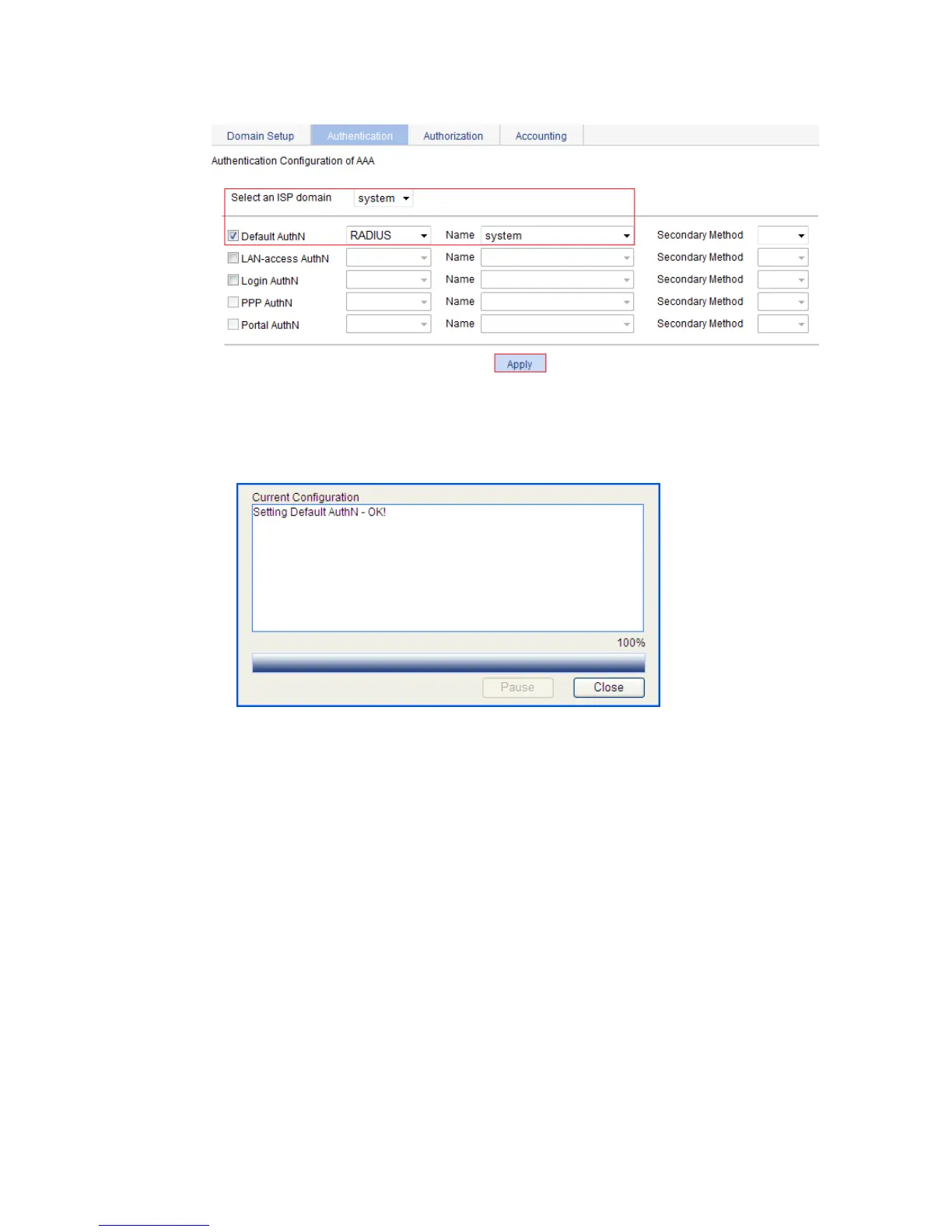

Figure 428 Configuring AAA authentication
e. Click Apply.
A dialog box appears, displaying the configuration progress, as shown in Figure 429.
Figure 429 Configuration progress di
alog box
f. When the configuration process is complete, click Close.
2. Configure AAA authorization method:
a. Click the Authorization tab.
b. Select the ISP domain system.
c. Select Default AuthZ, select authorization method RADIUS from the list, and select the
authorization scheme system from the Name list.
d. Click Apply.
