435

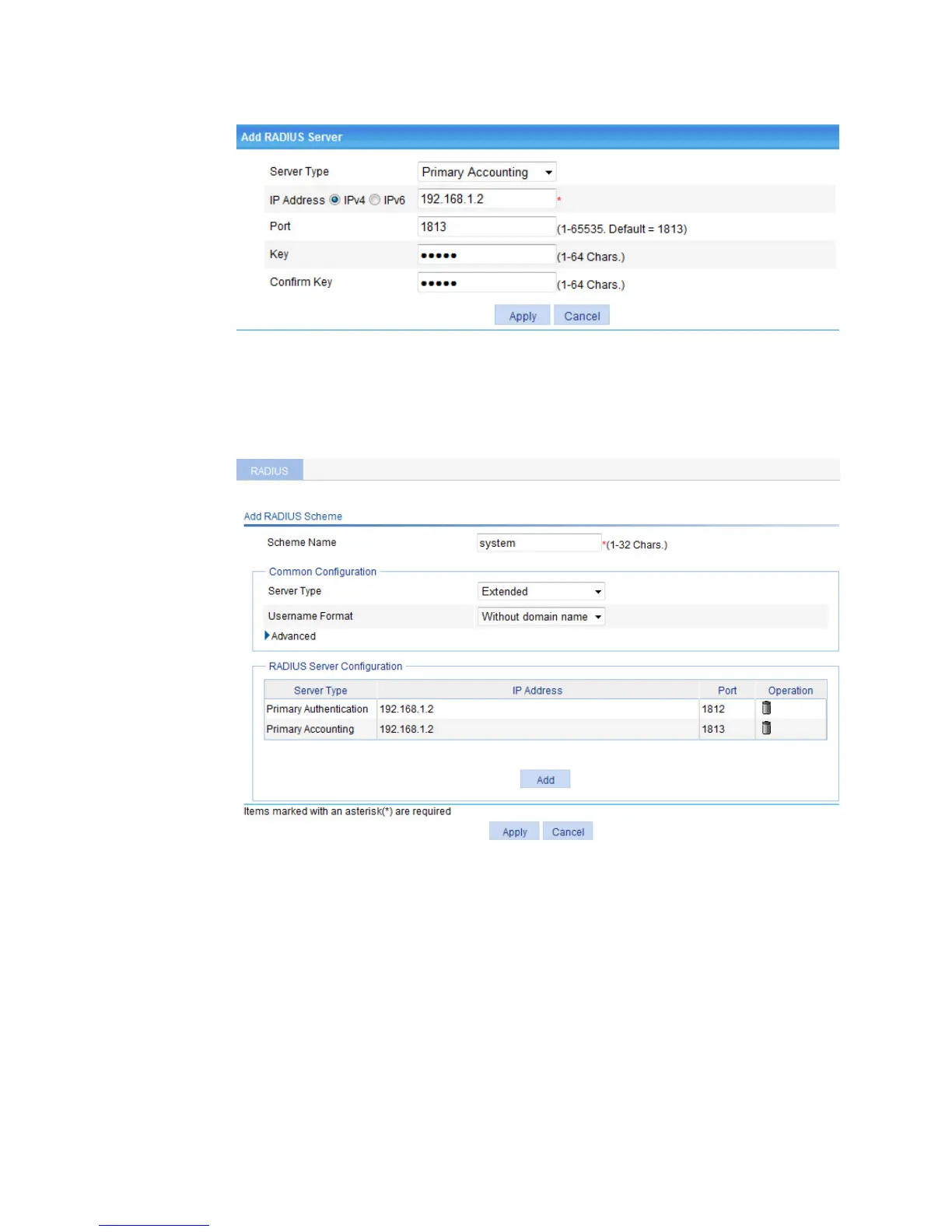

Figure 426 Configuring the RADIUS accounting server
c. Click Apply.
The RADIUS Server Configuration area displays the servers you have configured, as shown
in Figure 427.
Figure 427 Configuring the RADIUS scheme
4. Click Apply.
Configuring AAA
1. Configure AAA authentication method:
a. From the navigation tree, select Authentication > AAA.
b. Click the Authentication tab.
c. Select the ISP domain system.
d. Select Default AuthN, select the authentication method RADIUS from the list, and select
authentication scheme system from the Name list.
