HP 1920 Gigabit Ethernet Switch Series

492
c. Enter the class name class1.
d. Click Add.

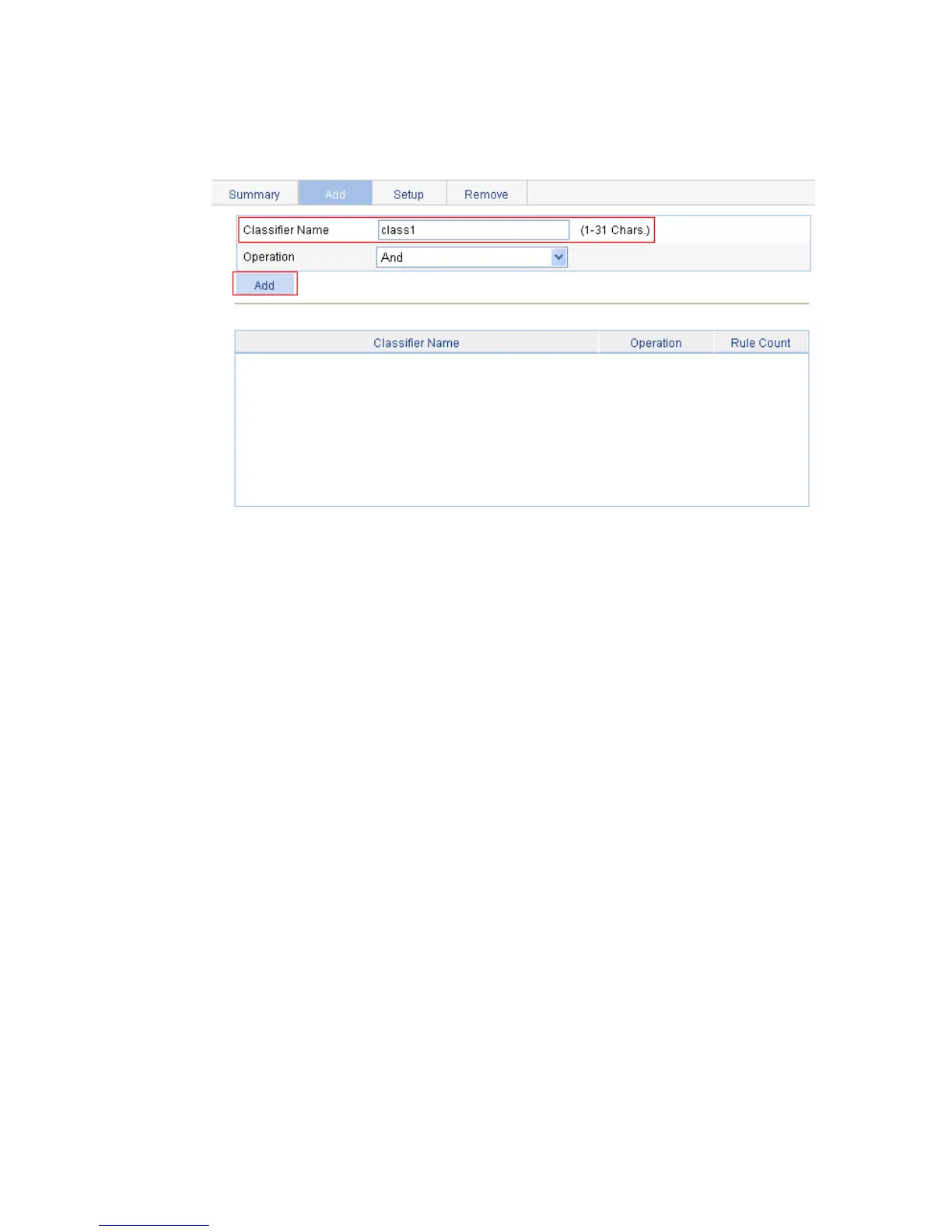

Figure 480 Adding a class
5. Define classification rules:
a. Click the Setup tab.
b. Select the class name class1 in the list.
c. Select the ACL IPv4 box, and select ACL 3000 in the following list.
