491
c. Select the Rule ID box, and enter rule ID 2.
d. Select Permit in the Action list.
e. Select the Destination IP Address box, and enter IP address 10.1.1.1 and destination wildcard
0.0.0.0.
f. Select test-time in the Time Range list.
g. Click Add.

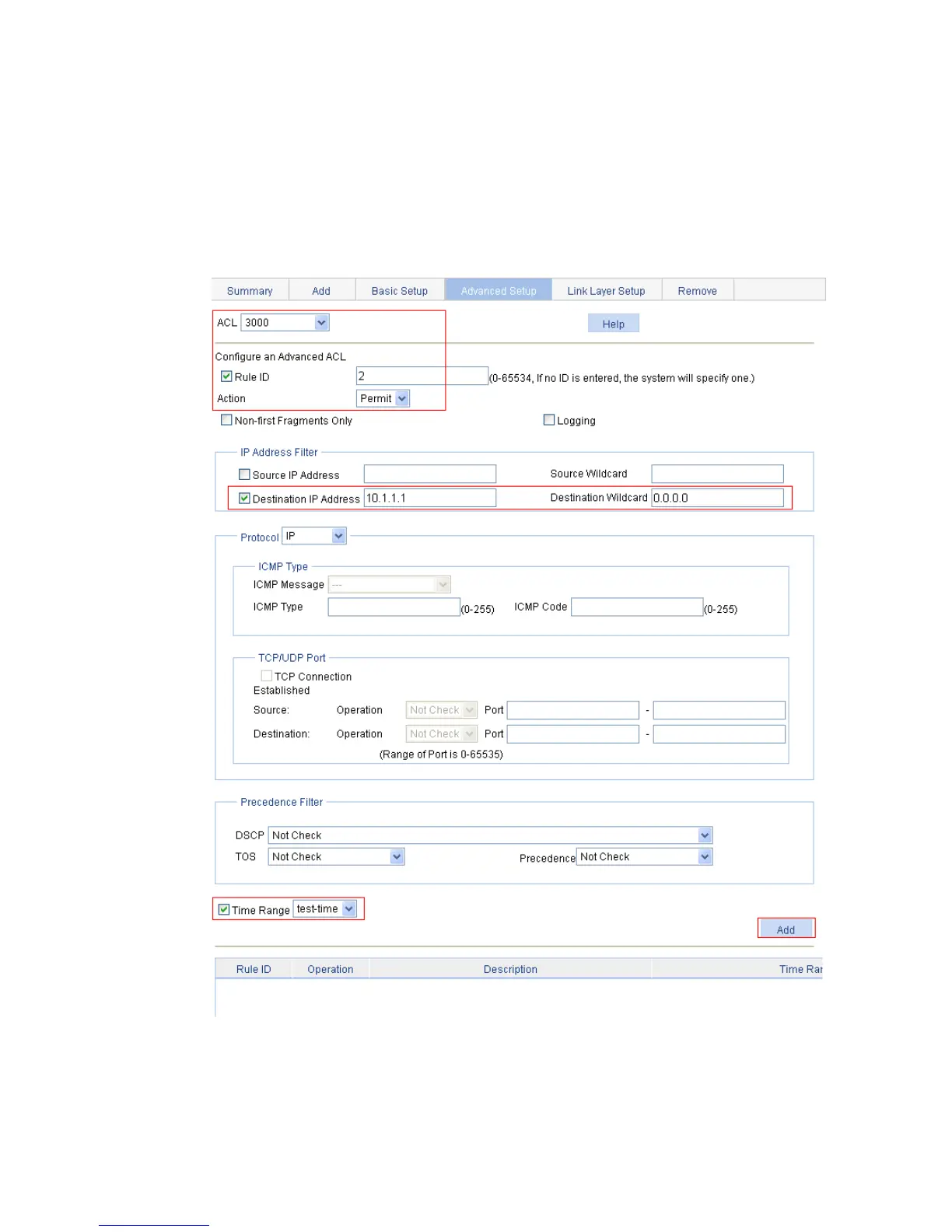

Figure 479 Defining an ACL rule for traffic to the FTP server
4. Add a class:
a. Select QoS > Classifier from the navigation tree.
b. Click the Add tab.
