44

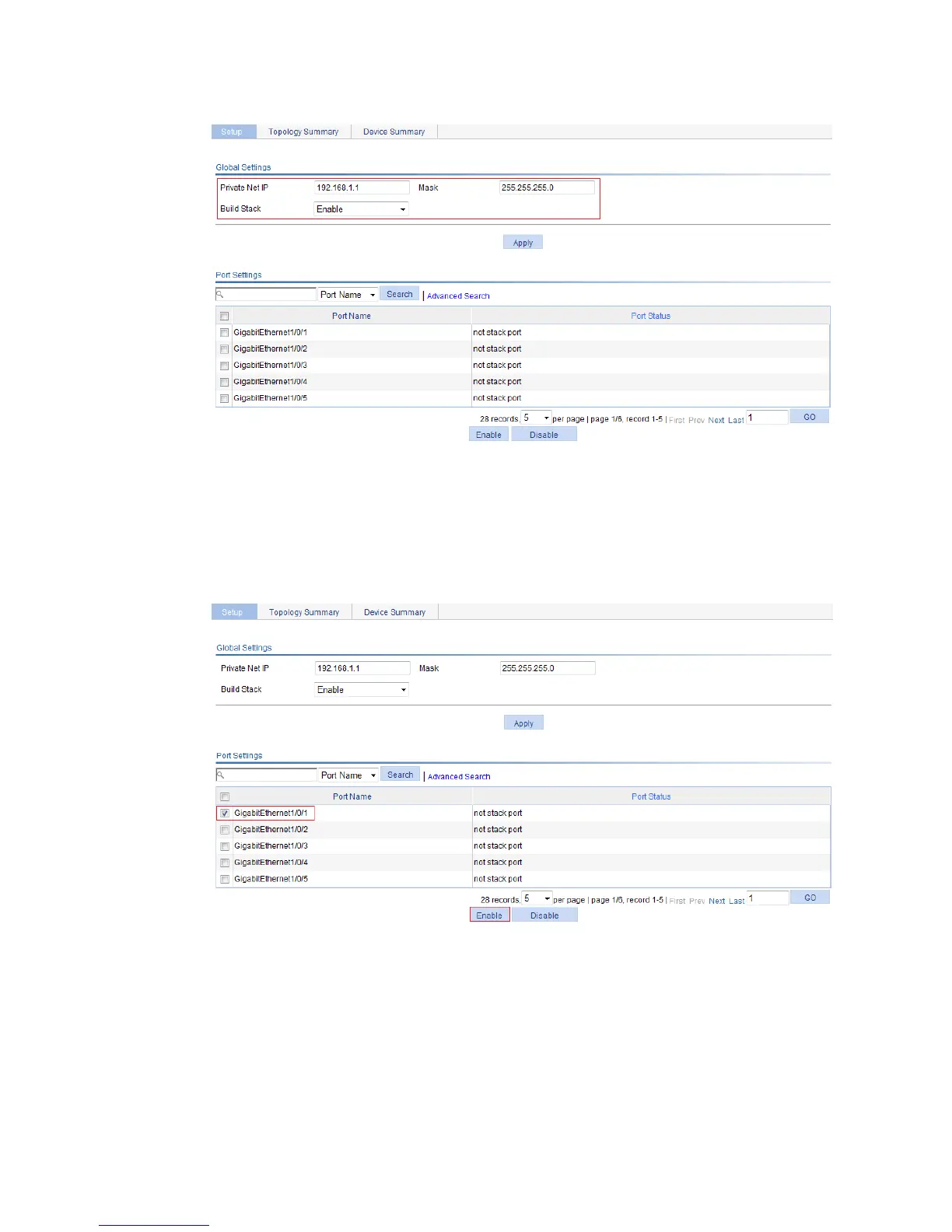

Figure 31 Configuring global parameters for the stack on Switch A
Switch A becomes the master device.
2. Configure a stack port on Switch A:
a. In the Port Settings area on the Setup tab, select GigabitEthernet1/0/1.
b. Click Enable.
Figure 32 Configuring a stack port on Switch A
3. On Switch B, configure GigabitEthernet 1/0/2 (connected to Switch A), GigabitEthernet 1/0/1
(connected to Switch C), and GigabitEthernet 1/0/3 (connected to Switch D) as stack ports:
a. Select Stack from the navigation tree of Switch B.
b. In the Port Settings area on the Setup tab, select GigabitEthernet1/0/1, GigabitEthernet1/0/2,
and GigabitEthernet1/0/3.
c. Click Enable.
