HP MSR SERIES User Manual

196

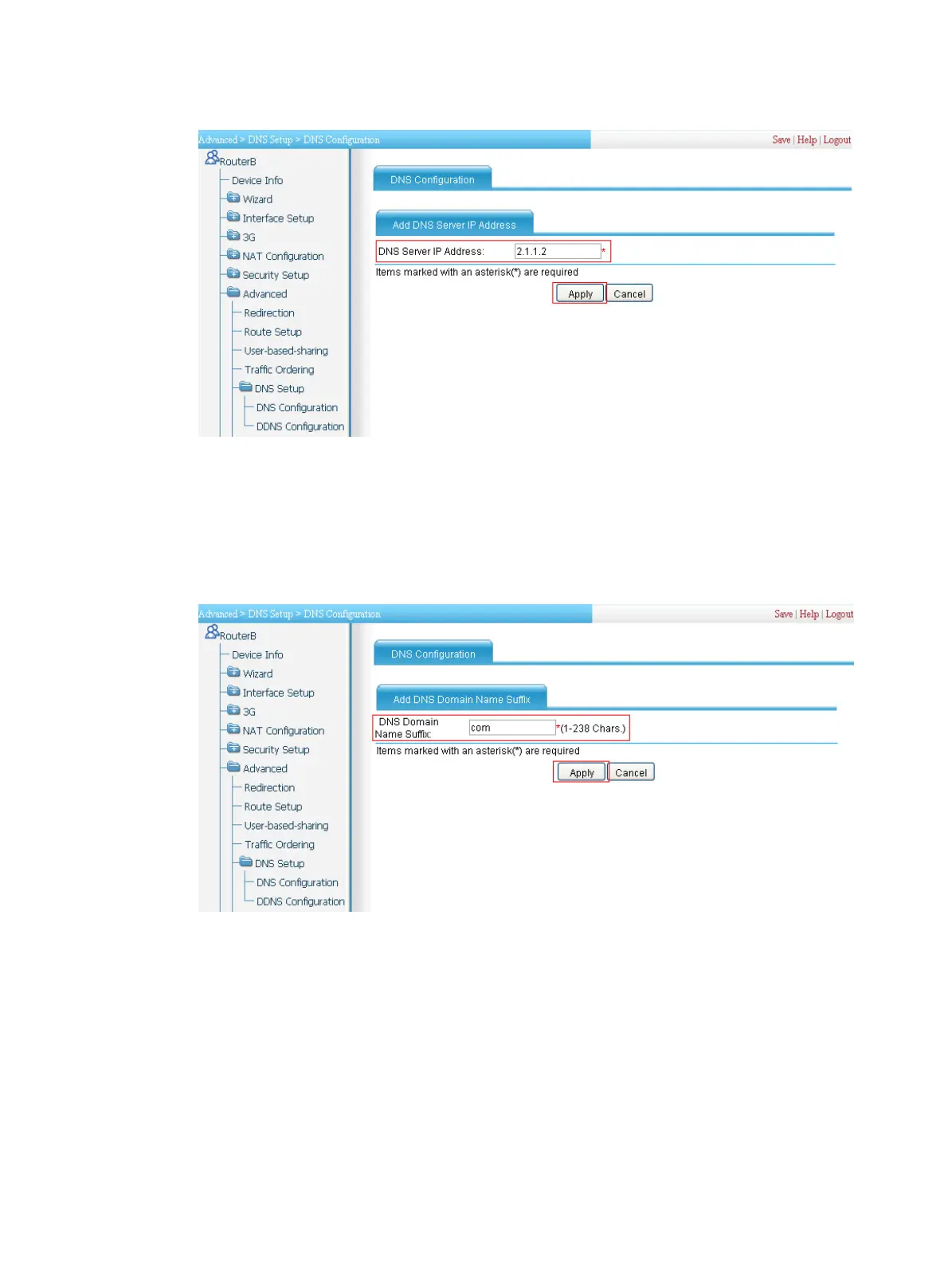

Figure 203 Specifying the DNS server address
3. Configure the domain name suffix:
a. Click Add Suffix to enter the page as shown in Figure 204.
b. Enter com in DNS Domain
Name Suffix.
c. Click Apply.
Figure 204 Configuring DNS domain name suffix
Verifying the configuration
Select Other > Diagnostic Tools from the navigation tree and click the Ping tab. Use the ping host
command to verify that the communication between Router B and the host is normal and that the
corresponding destination IP address is 3.1.1.1.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
