HP MSR SERIES User Manual

216

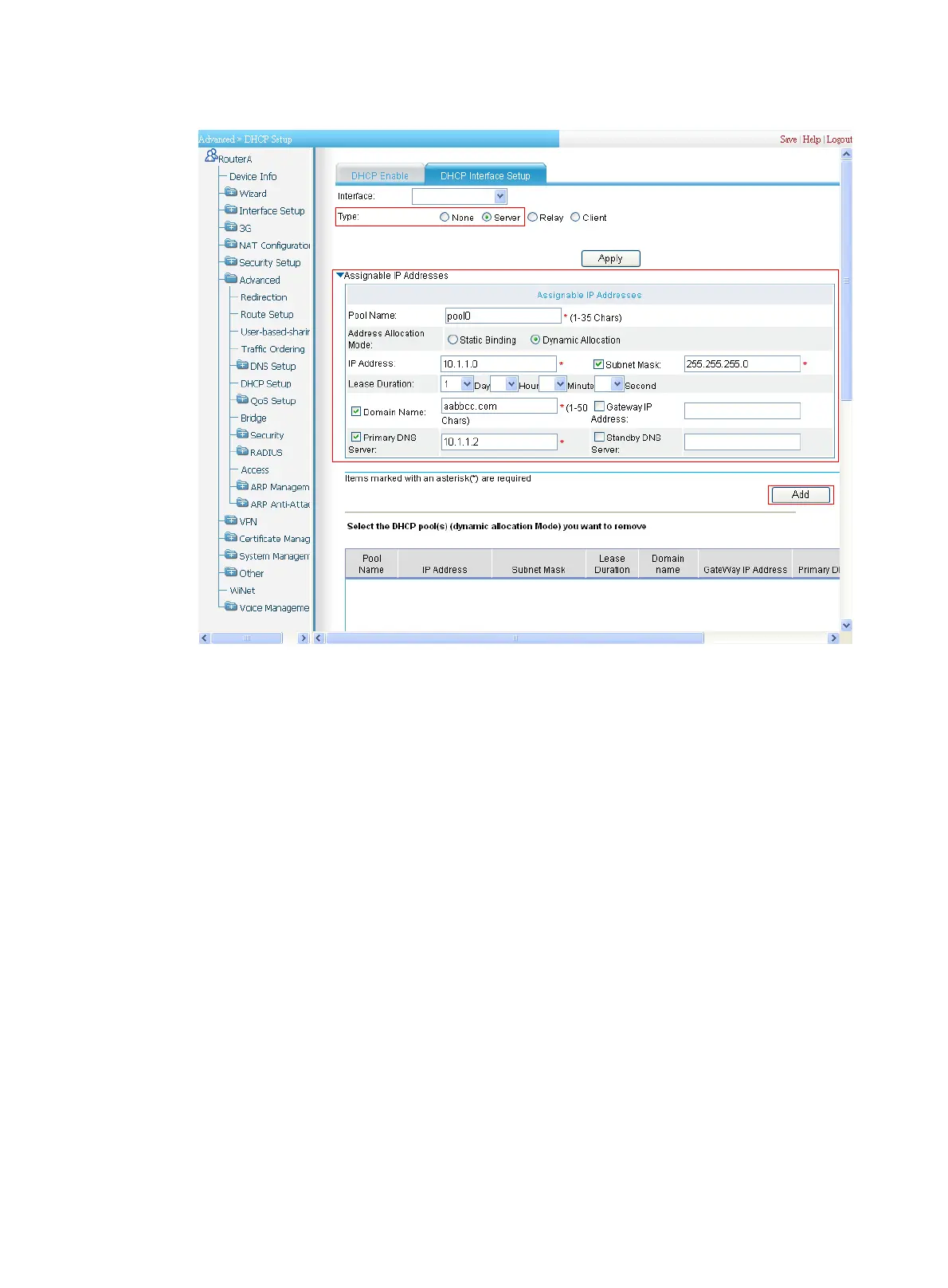

Figure 221 DHCP address pool 0 configuration
6. Configure DHCP address pool 1 (including the address range, lease duration, and gateway
address):
a. Enter poo1 in the Pool Name field, as shown in Figure 222.
b. Selec
t Dynamic Allocation in the Address Allocation Mode field.
c. Enter 10.1.1.0 in the IP Address field.
d. Select the Subnet Mask box, and then enter 255.255.255.128.
e. Set the Lease Duration to 10 days, 12 hours, and 0 minutes.
f. Select the Gateway IP Address box, and then enter 10.1.1.126.
g. Click Apply.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
