HP MSR SERIES User Manual

263

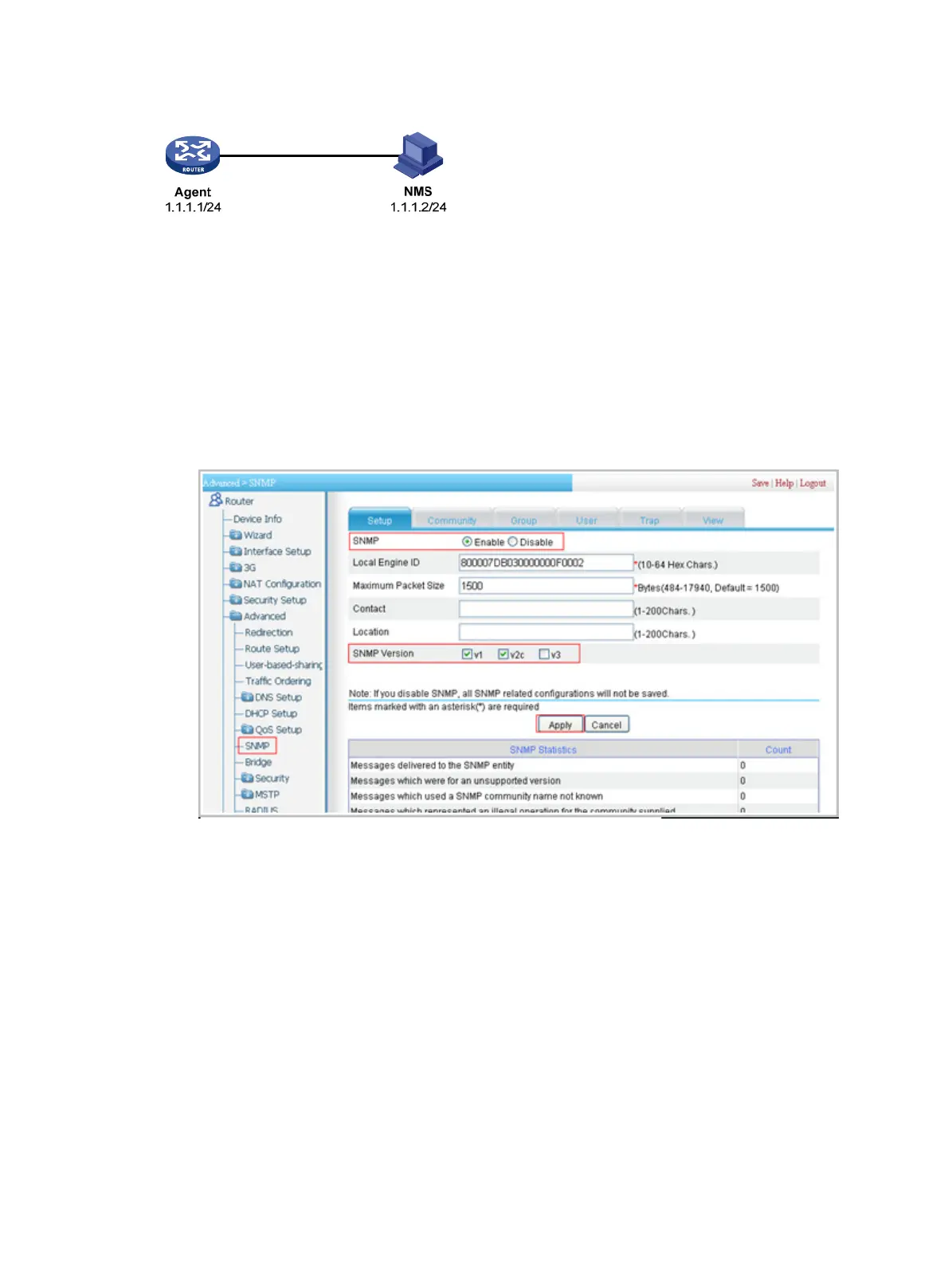

Figure 266 Network diagram
Configuring the agent
1. Enable SNMP:
a. Select Advanced > SNMP from the navigation tree, and you will enter the Setup page. Perform
the following configuration as shown in Figure 267.
b. Selec
t the Enable radio box.
c. Set the SNMP version to both v1 and v2c.
d. Click Apply.
Figure 267 Enabling SNMP
2. Configure an SNMP community:
a. Click the Community tab and then click Add. Perform the following configuration as shown
in Figure 268.
b. Typ
e public in the field of Community Name.
c. Select Read only from the Access Right list.
d. Click Apply.
e. Click the Community tab and then click Add. Perform the following configuration as shown
in Figure 269.
