HP MSR SERIES User Manual

267

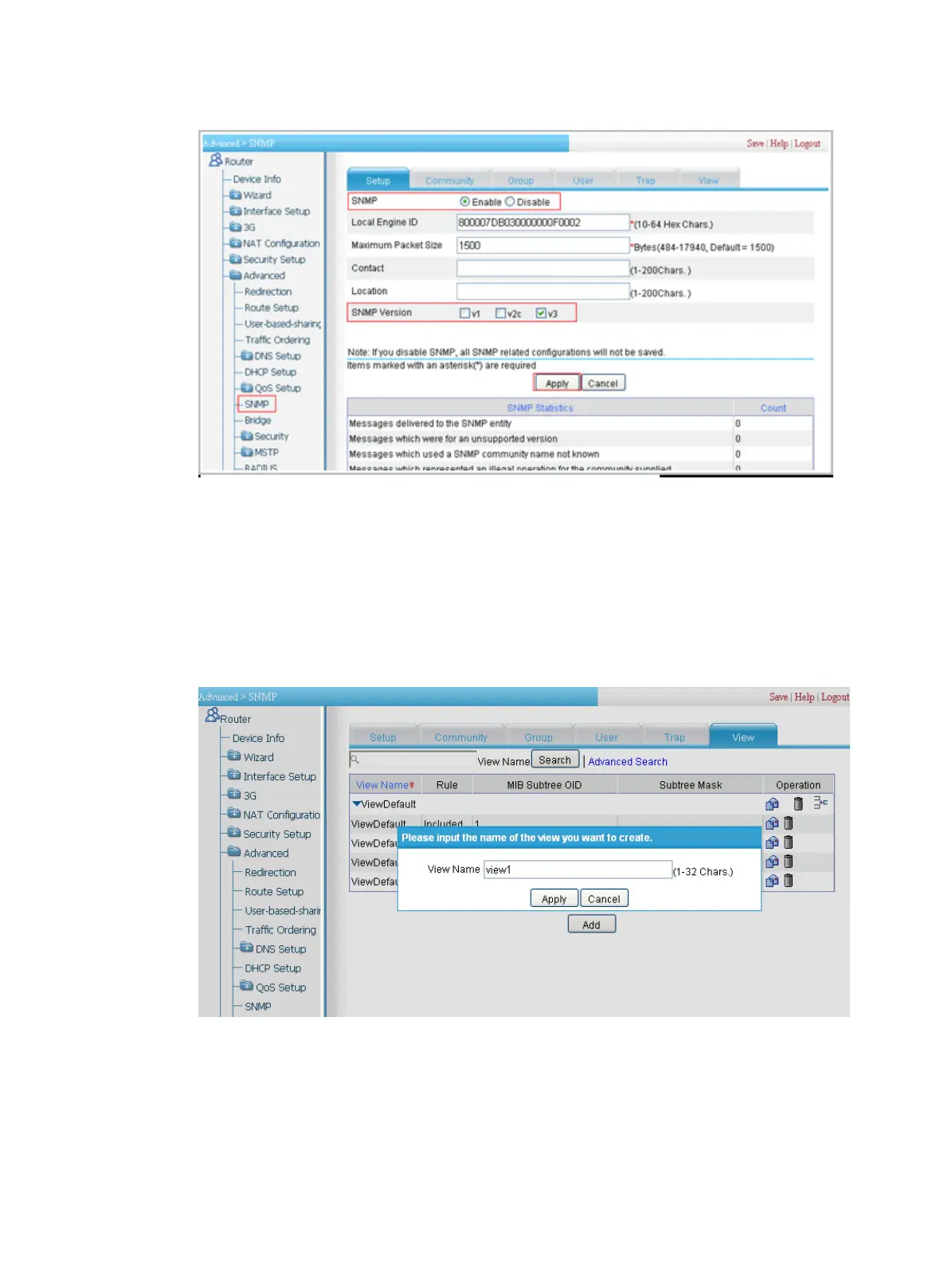

Figure 273 Enabling SNMP
2. Configure an SNMP view:
a. Click the View tab and then click Add. Perform the following configuration as shown in Figure
274.
b. Typ
e view1 in the field of View Name.
c. Click Apply and enter the page of view1. Perform the following configuration as shown
in Figure 275.
Figure 274 Set
ting the name of the view to be created

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
