HP MSR SERIES User Manual

268

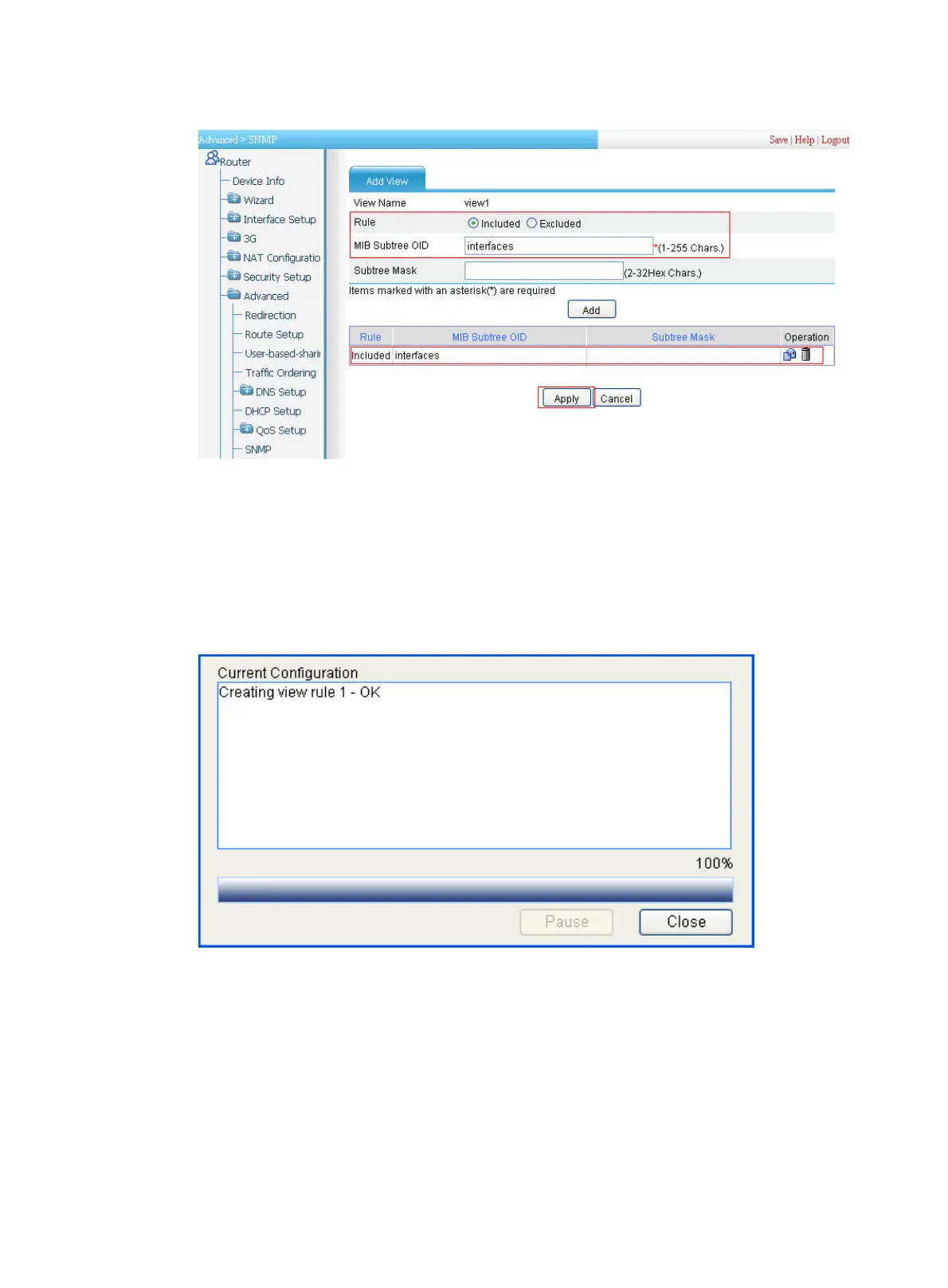

Figure 275 Adding a view named view1
d. Select the Included radio box.
e. Type the MIB subtree OID interfaces.
f. Click Add.
g. Click Apply. A configuration progress dialog box appears, as shown in Figure 276.
h. A
fter the configuration process is complete, click Close.
Figure 276 Configuration progress dialog box
3. Configure an SNMP group:
a. Click the Group tab and then click Add. Perform the following configuration as shown in Figure
277.
b. Typ
e group1 in the Group Name field.
c. Select view1 from the Read View list.
d. Select view1 from the Write View list.
e. Select v3 from the Security Level list.
f. Click Apply.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
