HP MSR SERIES User Manual

290

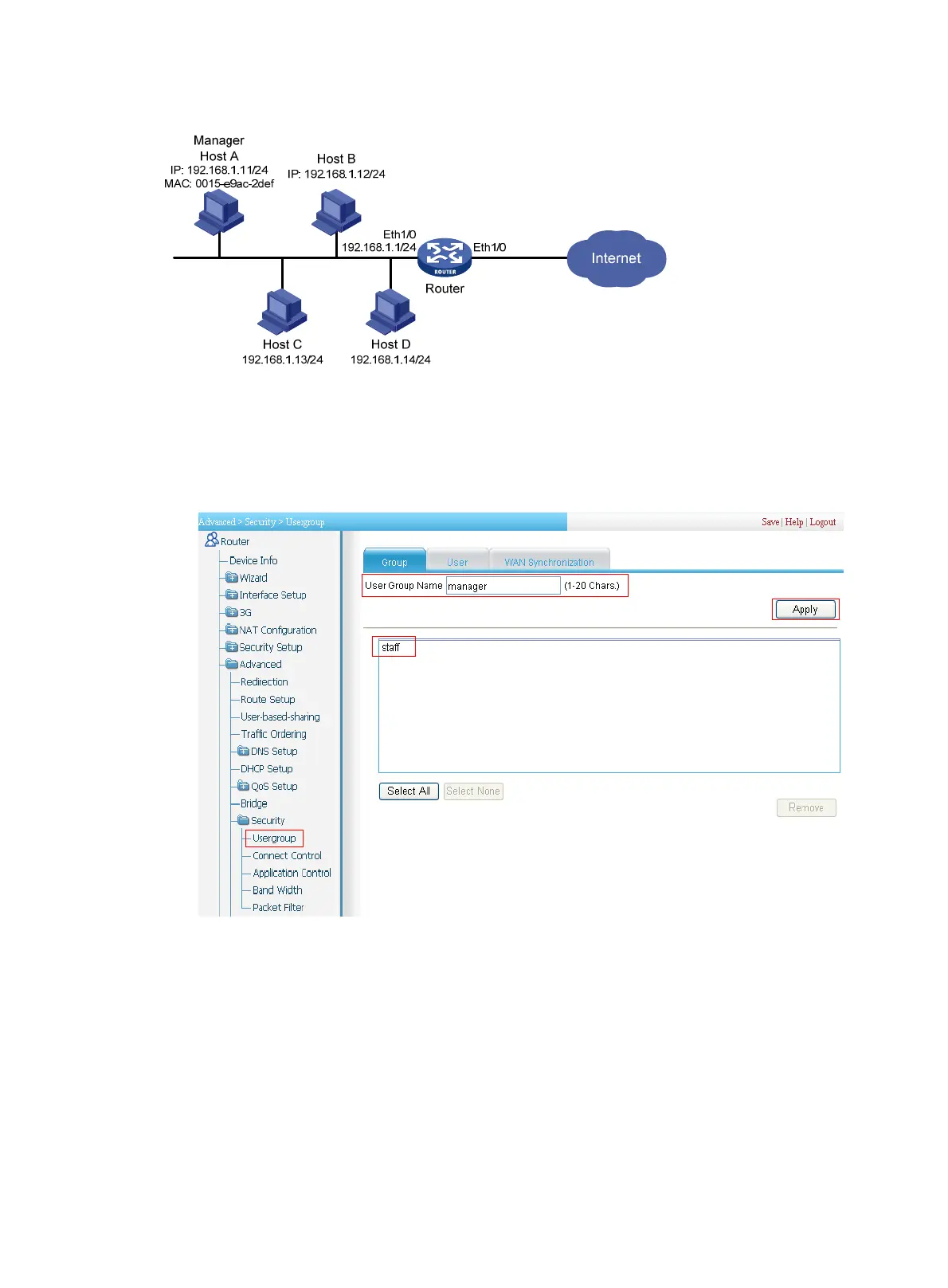

Figure 301 Network diagram
Creating user groups staff (for common users) and manager (for the manager)
1. Select Advanced > Security > Usergroup to enter the group configuration page. Perform the
configurations as shown in Figure 302.
Figure 302 Creating user groups staff a
nd manager
2. Enter staff as a user group name.
3. Click Apply.
4. Enter manager as a user group name.
5. Click Apply.
Adding users to user groups
1. Select Advanced > Security > Usergroup, and then select the User tab.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
