HP MSR SERIES User Manual

291

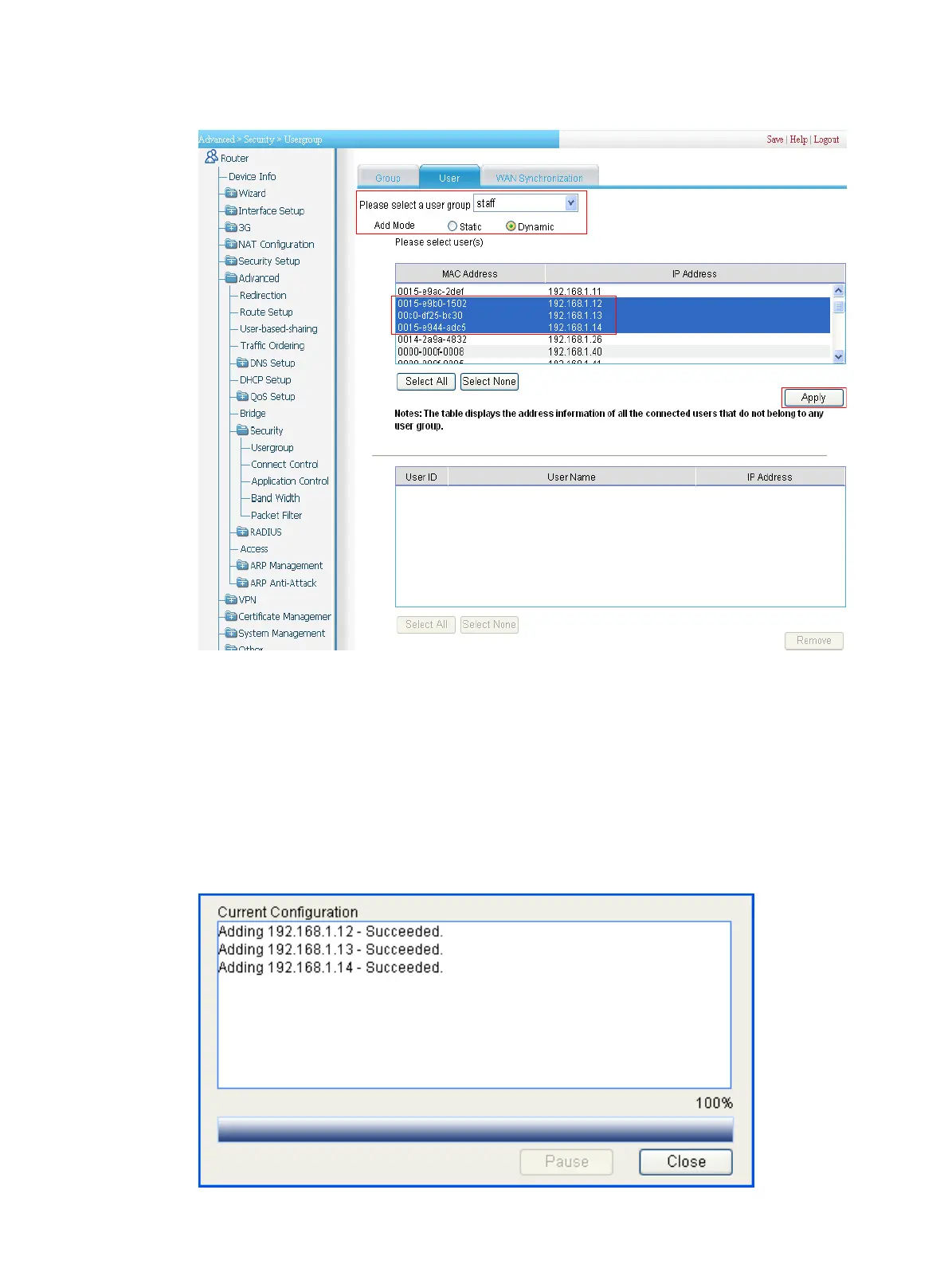

Figure 303 Adding users to user group staff
2. Select staff from the user group list.
3. Select Dynamic as the add mode.
The following area then displays the IP addresses and MAC addresses of all the hosts in the private
network that connects to the Router.
4. Select the entries of Host B, Host C, and Host D.
5. Click Apply.
A configuration progress dialog box appears, as shown in Figure 304.
Figure 304 Configuration progress di
alog box

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
