HP MSR SERIES User Manual

292
6. After the configuration process is complete, click Close.

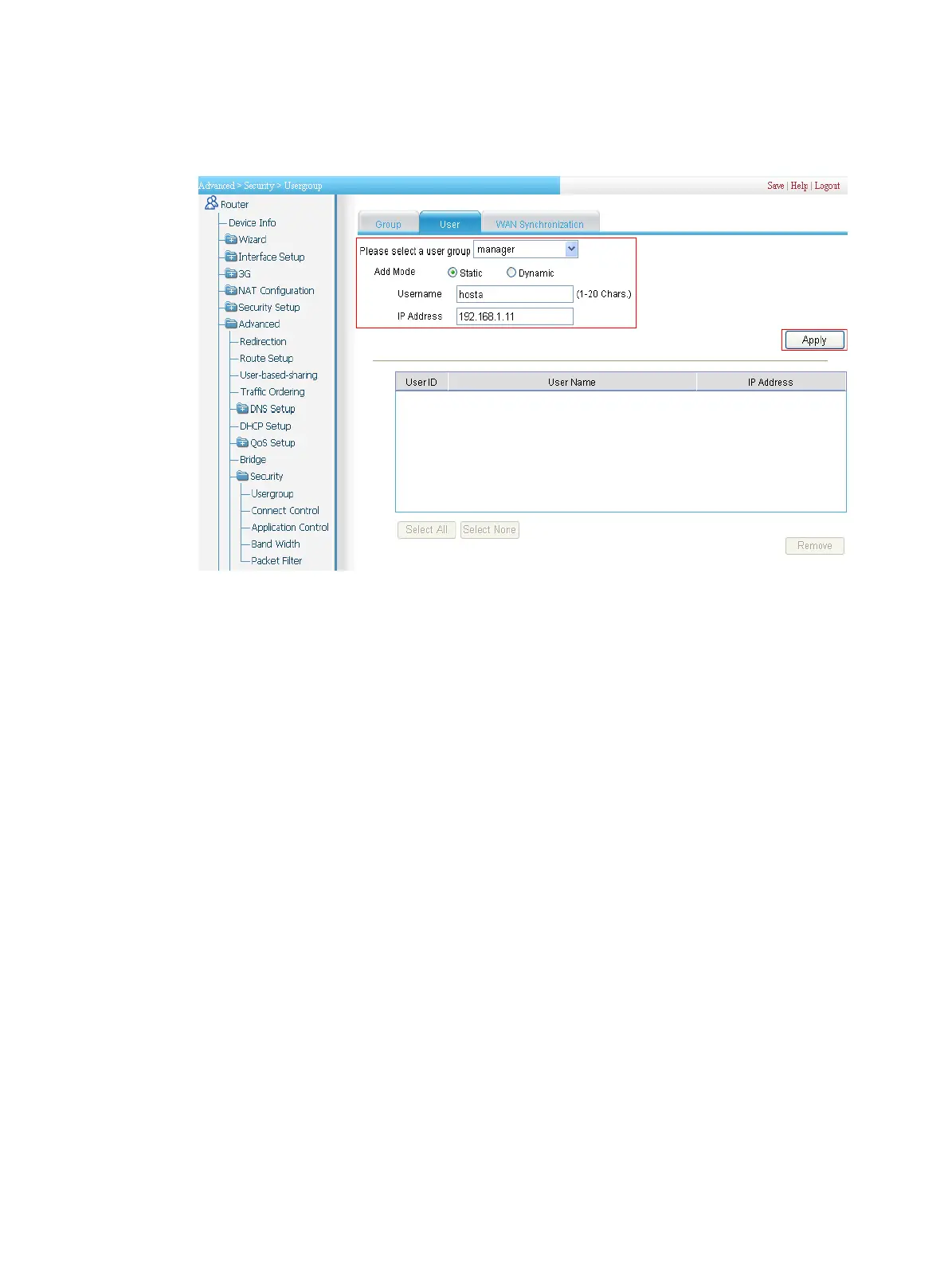

Figure 305 Adding users to user group manager
7. Select manager from the user group list.
8. Select Static for Add Mode.
9. Enter hosta as the username.
10. Enter 192.168.1.11 as the IP address.
11. Click Apply. A configuration progress dialog box appears.
12. After the configuration process is complete, click Close.
Configuring access control for user group staff
1. Select Advanced > Security > Connect Control.

HP MSR SERIES Specifications

General

Product Series	MSR Series
Manufacturer	HP
Category	Network Router
Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Varies by model
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Weight	Varies by model
Wireless Support	Varies by model
Management	Web-based, CLI
Power Supply	Varies by model
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% non-condensing
