Table 3-5 ECC800-Pro RF_Z parameters
Item Specications
RF_Z Operation
Frequency
2405–2480 MHz
RF_Z EIRP (max.) 8 dBm
Table 3-6 ECC800-Pro 4G parameters
Item Specications
3G/4G operation
frequency
LTE (FDD): BAND1, BAND2, BAND3, BAND4, BAND5,
BAND7, BAND8, BAND20
DC-HSPA+/HSPA+/HSPA/UMTS: 850/900/1900/2100
MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
3G/4G EIRP (max.) 23 dBm
Communications Port
The ECC800-Pro provides the following communications ports. Figure 3-5 shows
the pins of the RJ45 port.

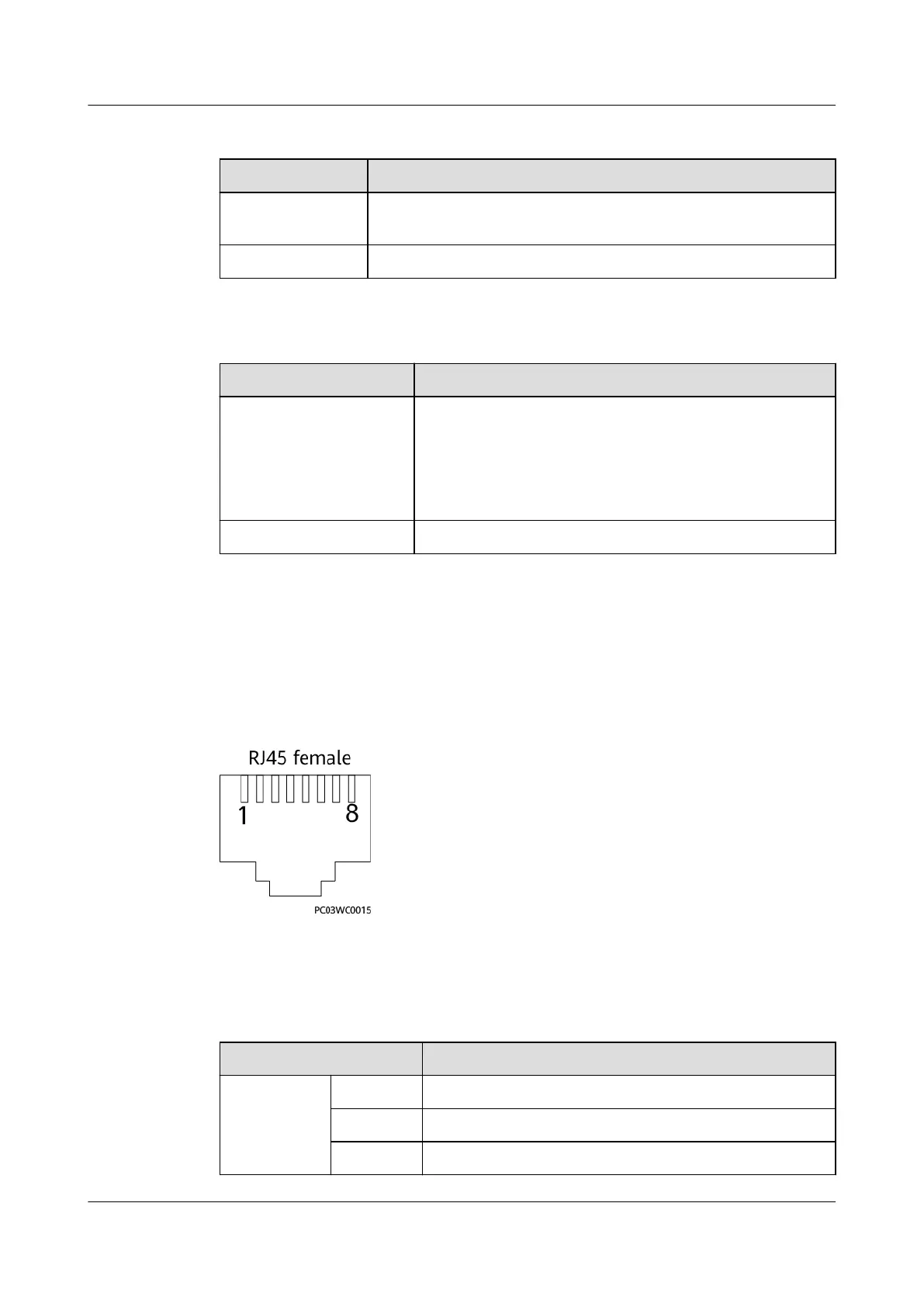

Figure 3-5 RJ45 port pins
There are four GE ports, that is, two WAN ports (WAN1 and WAN2) and two LAN
ports (LAN1/POE and LAN2/POE).
Table 3-7 GE port pin
denitions
Item
Description
Pin
sequence
Pin1 GE1+
Pin2 GE1-
Pin3 GE2+
ECC800 Data Center Controller
User Manual (for ECC800-Pro) 3 Device Description
Issue 02 (2020-09-07) Copyright © Huawei Technologies Co., Ltd. 18
