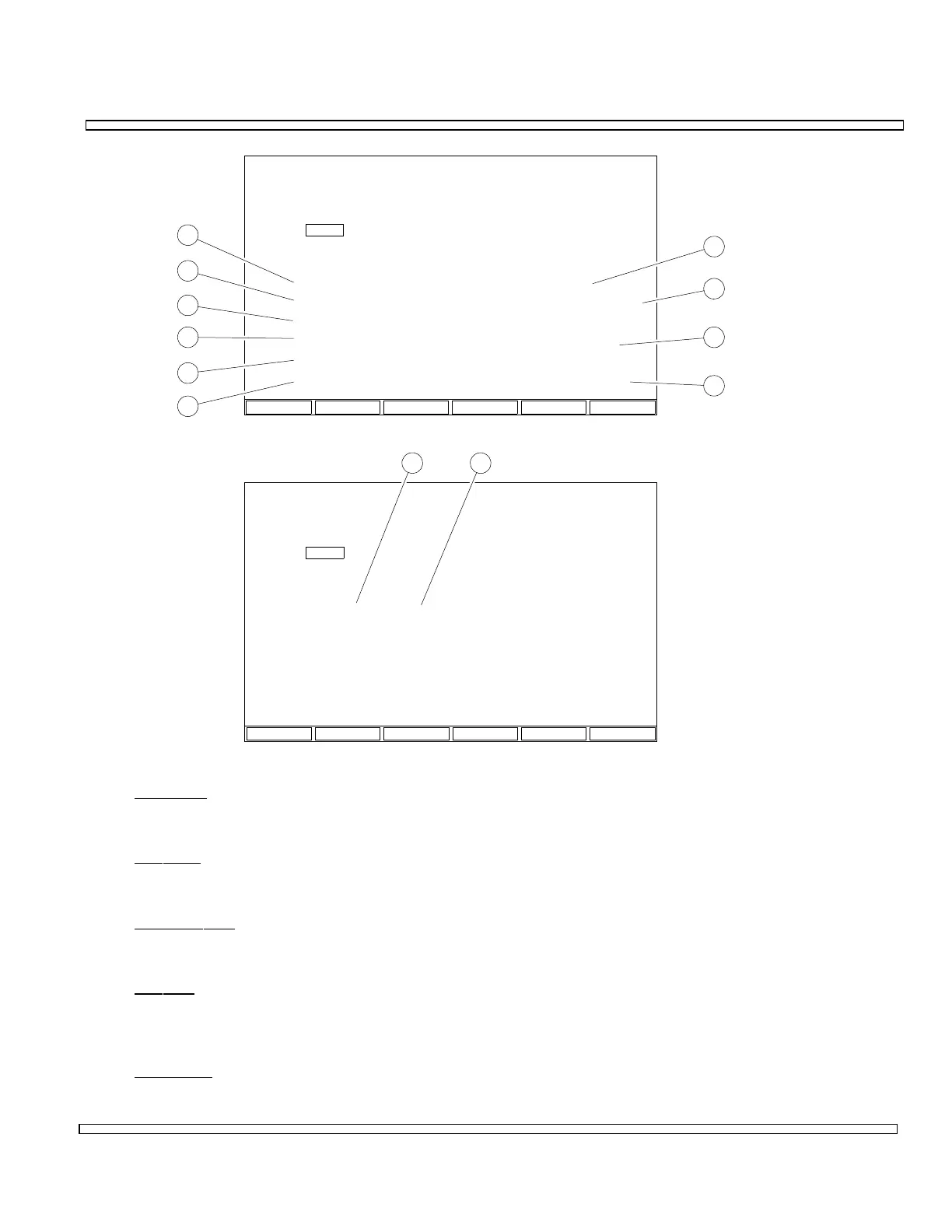

AMPS Cellular
Automatic Test
Registration
Mobile Init
Cell Init
Handoff Test
Audio Test
FINISHED
FINISHED
FINISHED
FINISHED
FINISHED
Called Adr:
SAT Freq:
Freq Err:
SAT Dev: 2.37 kHz
5970 Hz
0.06 kHz
6823819
9.57 kHzHangup Dev:
TX Pwr: 22.0 dBm
V Chan: 300
DTMF 123456789"0"
Flash Dur: 390 msec
ST Freq: 10.000 kHz
8
9
10
11
12
13
14
15
16
17
871711
8
RETURN
AMPS Cellular
Automatic Test
Registration
Mobile Init
Cell Init
Handoff Test
Audio Test
FINISHED
FINISHED
FINISHED
FINISHED
FINISHED
Level Reading Level Reading
0
1
2
3 22.0 dBm
26.1 dBm
34.0 dBm
29.7 dBm
3
2
0
1
6.0 dBm
9.2 dBm
13.8 dBm
17.5 dBm
18 19
20. SAT Dev
Displays SAT Deviation received from Mobile Phone.
21. ST
Freq
Displays Signal Tone (Hang Up) Frequency received from Mobile Phone.
22. Hangup
Dev
Displays Signal Tone (Hang Up) Deviation received from Mobile Phone.
23. TX
Pwr
Displays Mobile Phone Output Power. Mobile Phone is set to Power Level
selected as Power Level Reference in AMPS Setup Menu.
24. SAT
Freq
Displays SAT Frequency received from Mobile Phone.
