4.2.5. “CAN / COM4” tab of “Devices options…” window

“CAN / COM4” tab (see Fig. 4.14) combines configuration of CAN

messages output and variants of COM4 port using to do not allow

simultaneous choice of incompatible variants and other mismatch.

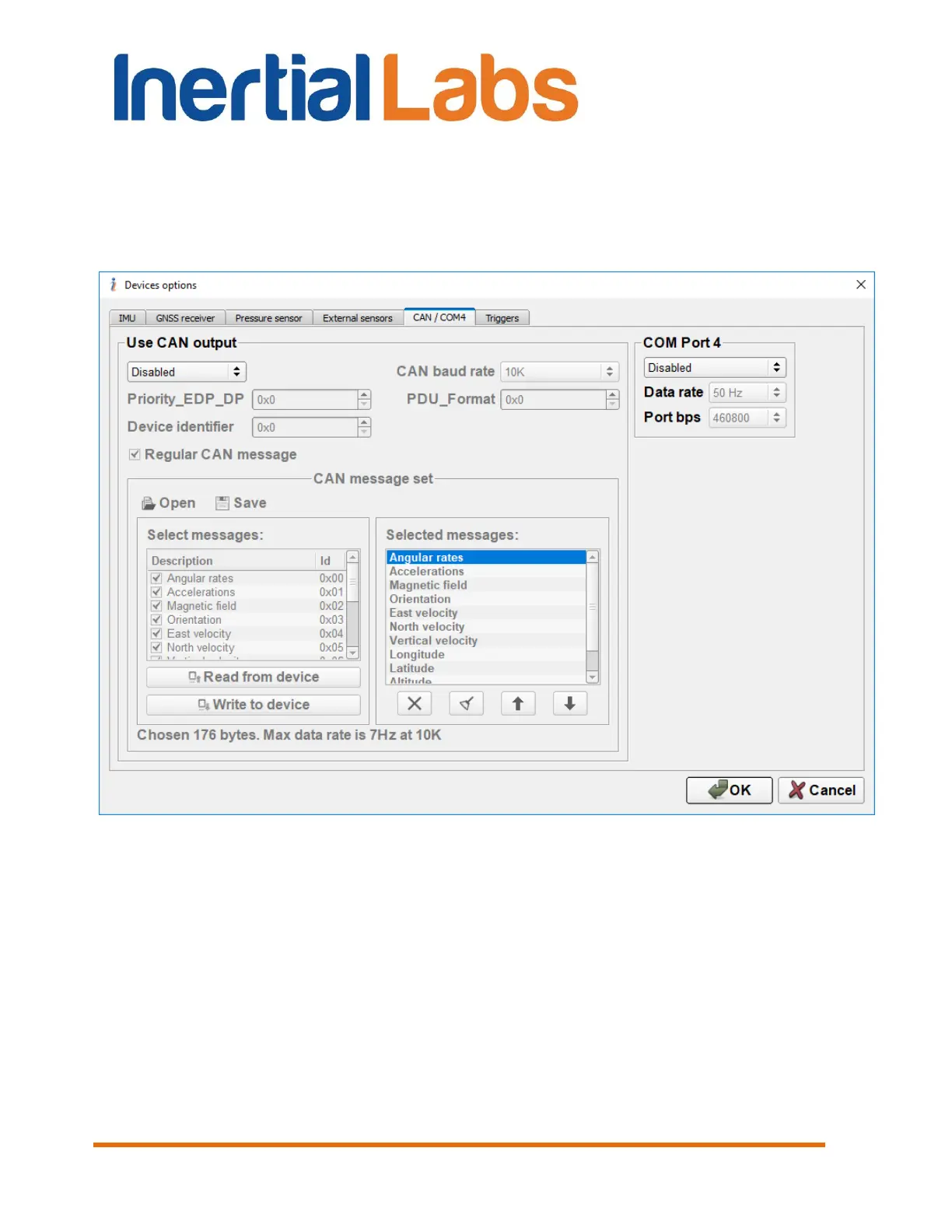

Fig. 4.14

4.2.5.1. Configuration of CAN messages output

To allow INS output of CAN messages it is necessary to choose variant of

the CAN data in the drop-down list (see Fig. 4.15). The Inertial Labs

INS

supports CAN standards 2.0A and 2.0B – with 11 bit base identifier and 29

bit extended identifier.
