INS
GUI User’s Manual
Inertial Labs, Inc
TM
Address: 39959 Catoctin Ridge Street, Paeonian Springs, VA 20129 U.S.A.
Tel: +1 (703) 880-4222, Fax: +1 (703) 935-8377 Website: www.inertiallabs.com
83

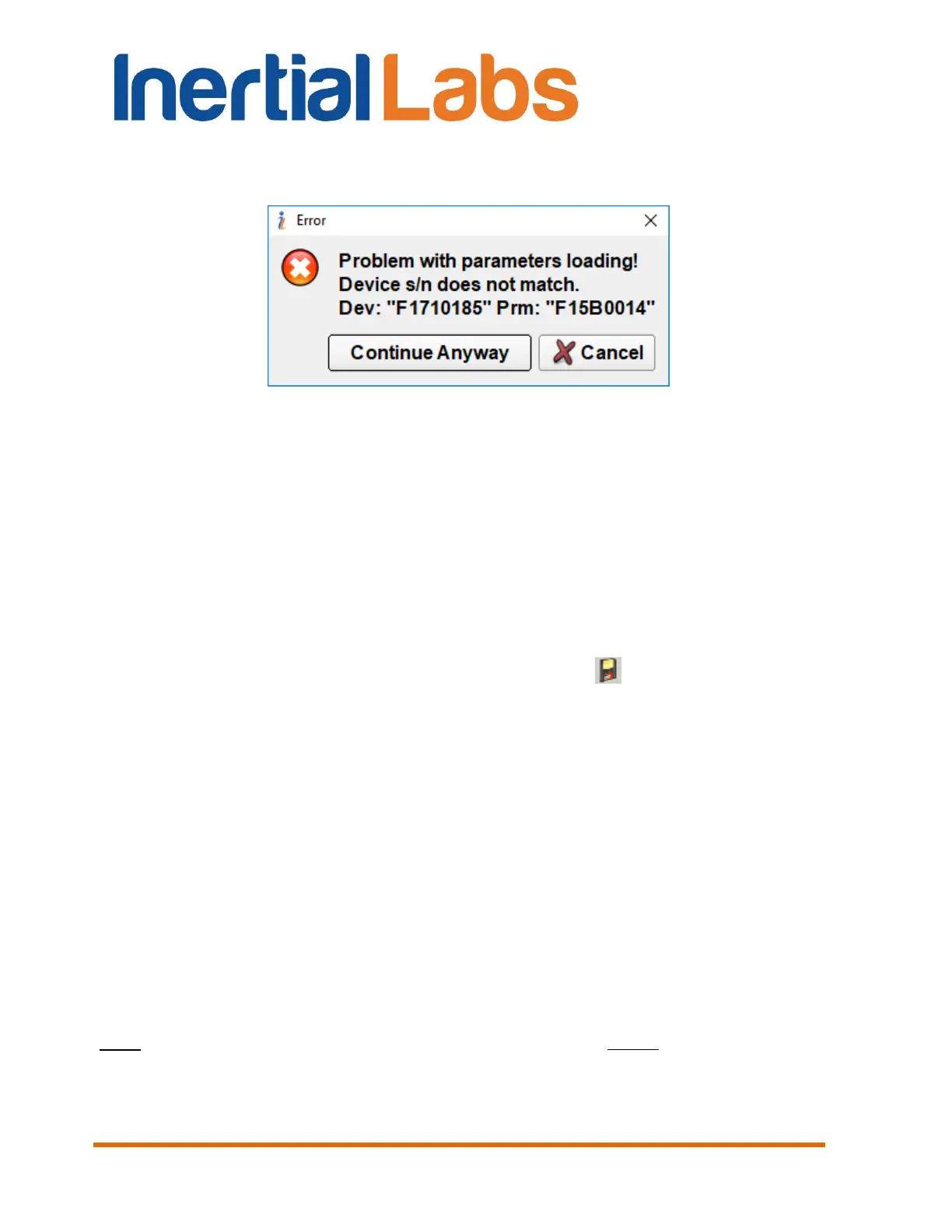

window appears with information about different serial numbers and request
about user action – see Fig. 7.1.
Fig. 7.1
This possibility is helpful if INS serial number was corrupted.
7.3. Save parameters
If you have changed some parameters of the INS (in “Device options…”
window from the “Options” menu or other menus), and you want to save
these parameters as variant for future work, you can save the INS current
parameters in binary file with .prm extension. For this use “Save
parameters” command (see Fig. 3.4) or click button. After that a
standard Windows “Save as …” window is opened; in this window operator
is suggested to save current parameters of the INS to a “File of parameters”
with .prm extension.
7.4. Preset parameters
The Inertial Labs INS GUI provides preset of the INS parameters that adjust
INS algorithm for some specific conditions of operations to get better
dynamic accuracy of the INS.
To modify INS parameters select “Preset parameters” item from the
“Parameters” menu (Fig. 3.4). The window Fig. 7.2 will be opened. Since
INS GUI version 2.0.43.217 from 2017.08.10 this window contains only one
variant of parameters preset – “Load from file”.
Note: you are able to apply “Preset parameter variants” only if INS is powered and
connected to computer and СОМ port number and its baud rate are chosen properly and
INS initialization time (about 25 sec after power on) is completed so LED indicator lights
red.
