INS

GUI User’s Manual

Inertial Labs, Inc

Address: 39959 Catoctin Ridge Street, Paeonian Springs, VA 20129 U.S.A.

Tel: +1 (703) 880-4222, Fax: +1 (703) 935-8377 Website: www.inertiallabs.com

4.2.2. “GNSS receiver” tab of “Devices options…” window

There are options for the onboard GNSS receiver (see Fig. 4.4). The first

two rows show the next information: GNSS receiver name, model, serial

number, firmware version and maximum data rate.

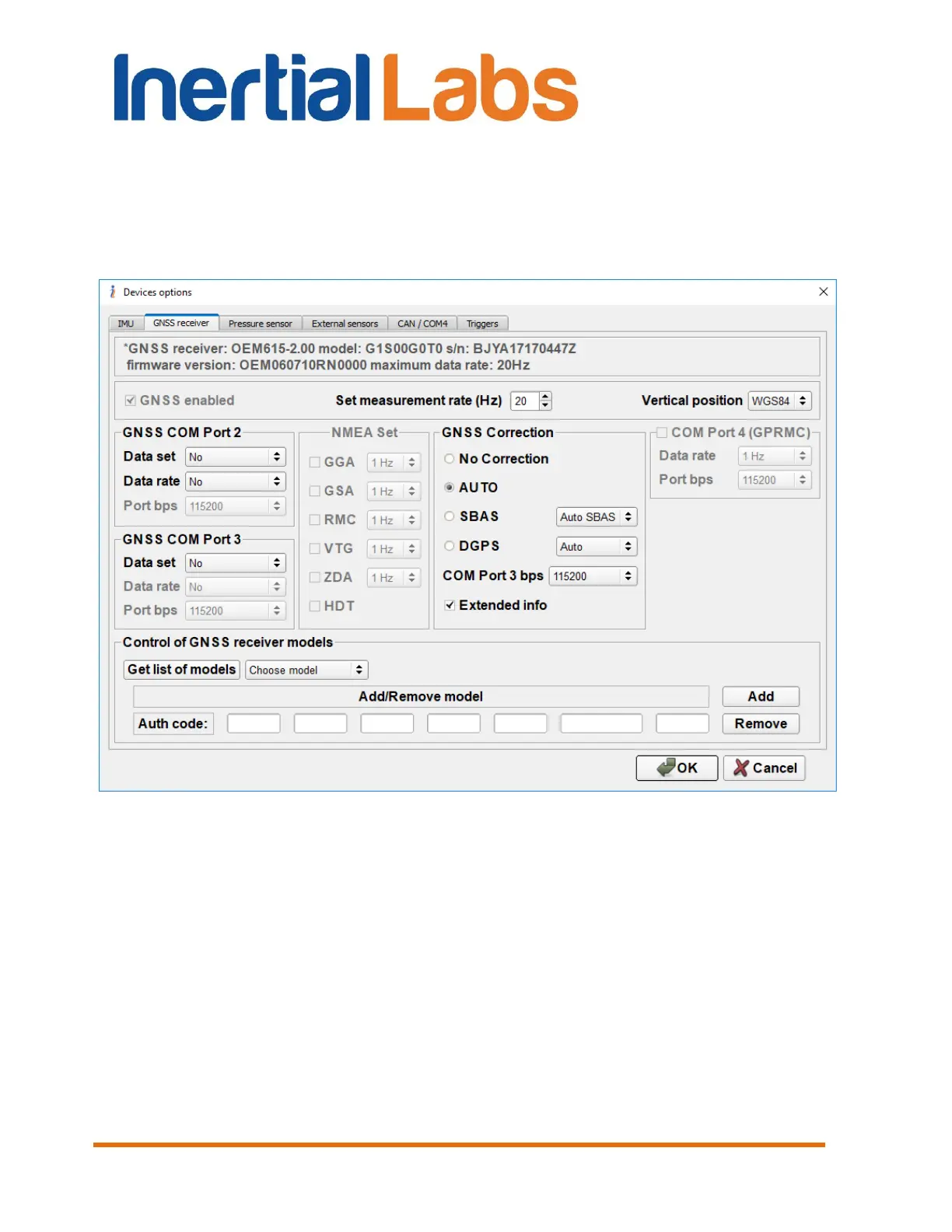

Fig. 4.4

There are the next very important settings for the GNSS receiver:

 GNSS enabled – enables using of the GNSS data. This parameter

cannot be changed.

 Set measurement rate (Hz) – rate of the GNSS data update. It is

highly recommended to set this rate to the maximum value supported by

actual model of the GNSS receiver. Note the INS unit controls entered rate

of the GNSS data and does not allow to set it larger than supported by the

current GNSS receiver model.
