5.3. On-the-fly accuracy style of visualization
“On-the-fly accuracy” feature is designed for checking the INS accuracy at
its ordinary operation when the INS can be directed to points with known
orientation.
To switch visualization to this mode click on preview shown in the Fig. 5.2
(c) and window shown in the Fig. 5.4 will appear.
For more information about this type of visualization see section "10.5.2. On-
the-fly accuracy test".

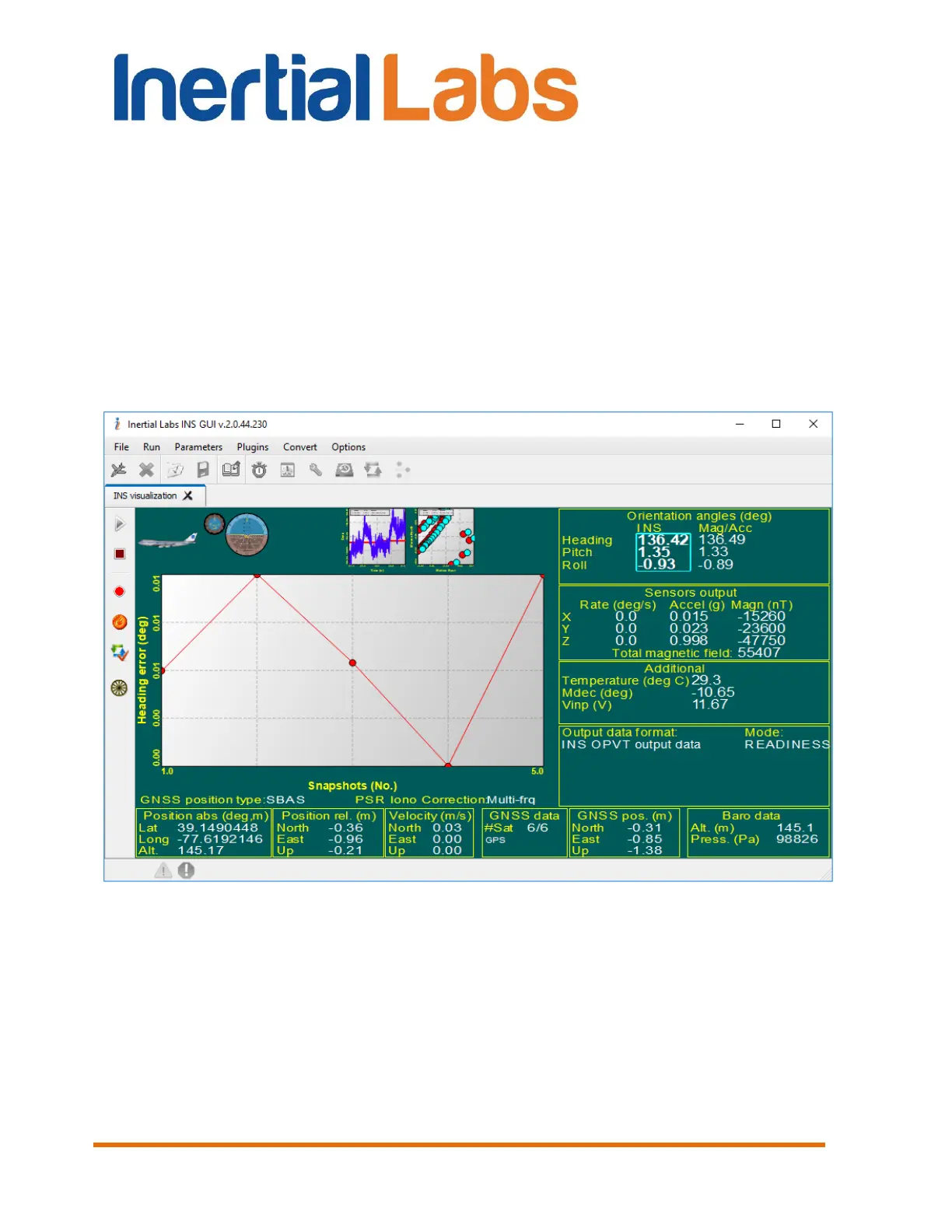

Fig. 5.4
