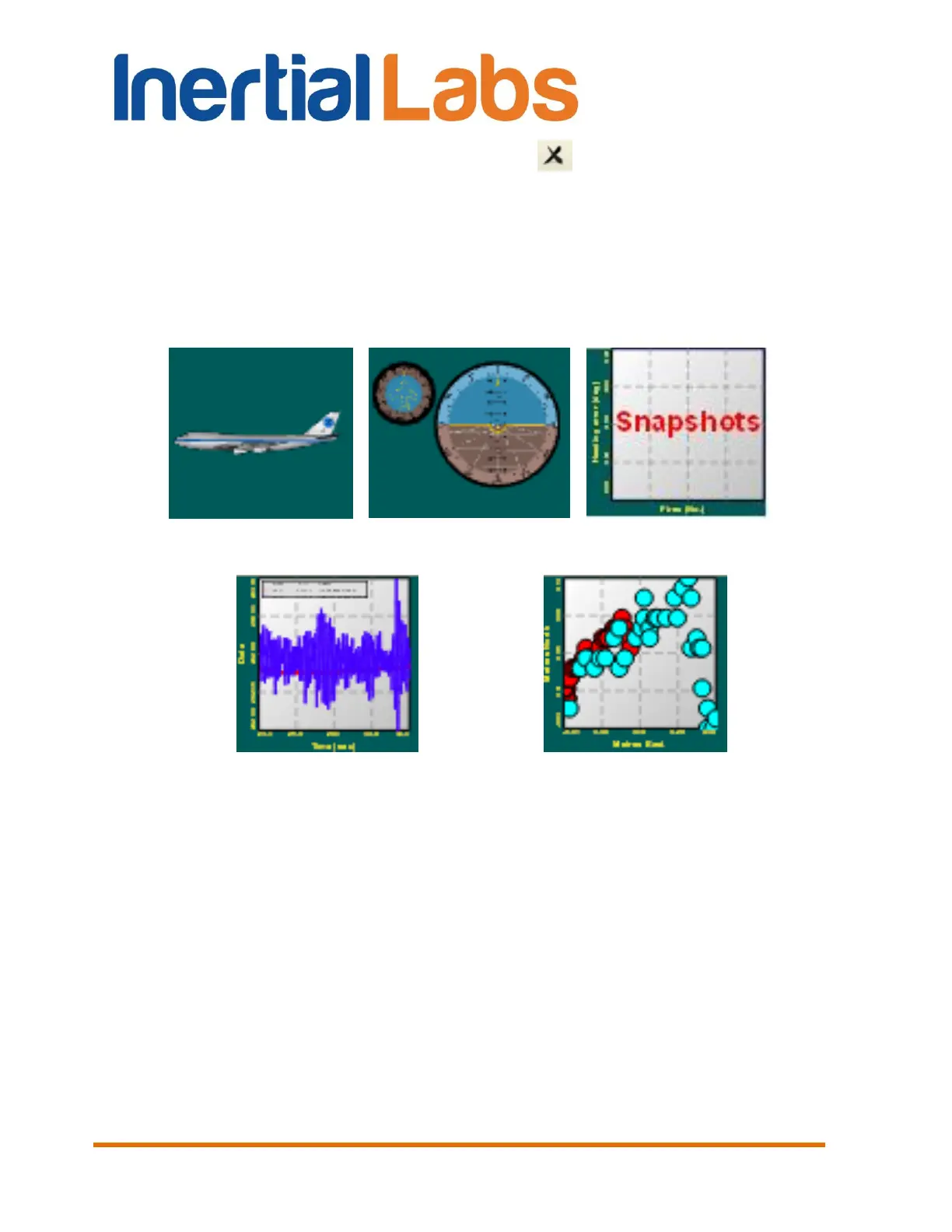

To leave the INS visualization mode click the in the title of current tab.

For other styles of visualization of the INS outputs there are clickable

previews in the upper part of the “INS visualization” tab (Fig. 5.2). It is

possible to switch between visualization styles at any time of the INS

operation by simple clicking on its preview.

Fig. 5.2
