4.6.2. “User defined data” format configuration file (*.udd)
Created configuration of the “User defined data” format can be transferred
to other INS units using binary file with the .udd extension.
To save the current configuration to file, please click the "Save" button (Fig.
4.29). After that a standard MS Windows “Save as …” window is opened.
User can change file name or keep its default name with .udd extension.

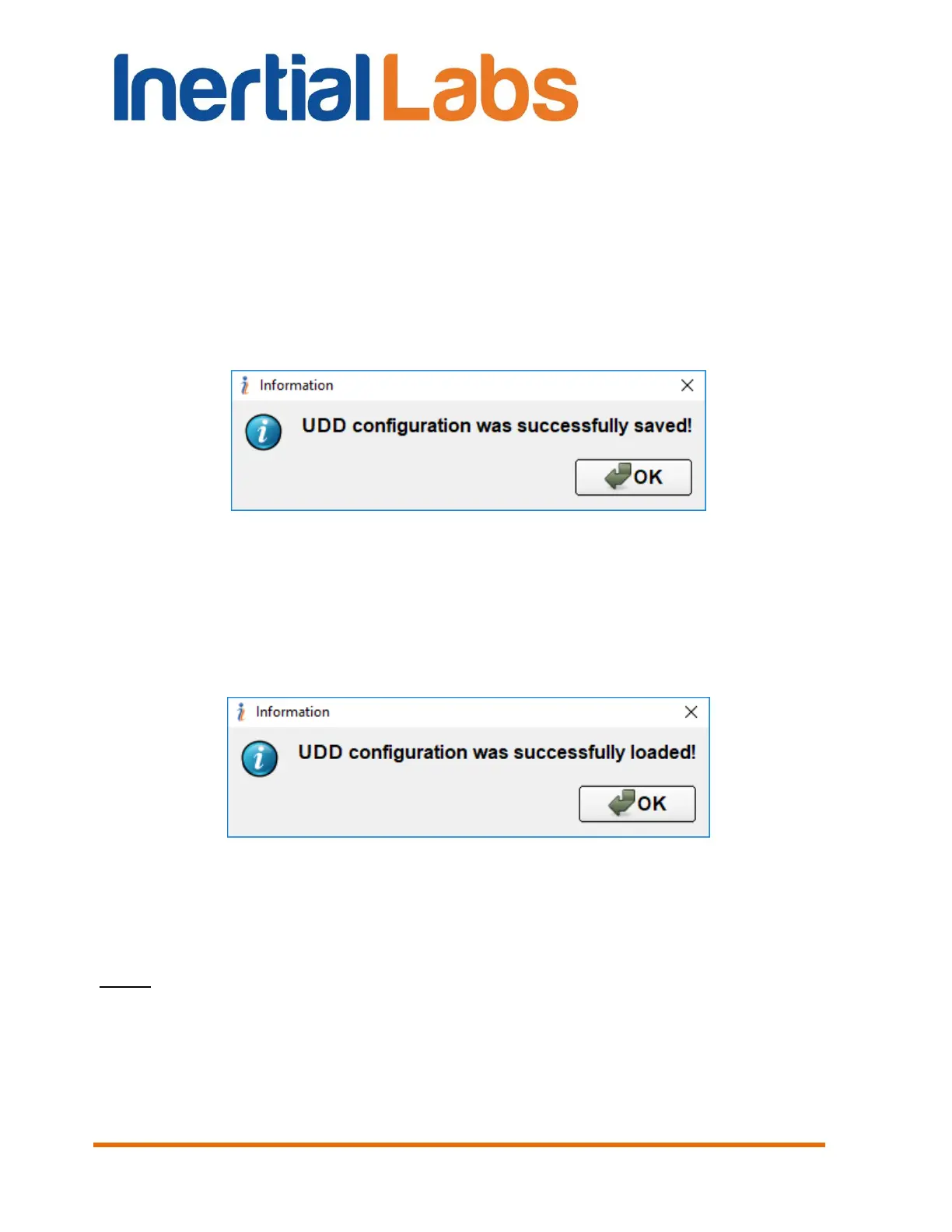

After saving, the following message appears (Fig. 4.34):
Fig. 4.34
To load the “User defined data” configuration from file, please click the
"Open" button (Fig. 4.28). After that a standard Windows “Open” window is
opened; in this window pleas select one of the previously saved files with
.udd extension. After opening the selected file, the following message
appears (Fig. 4.35):
Fig. 4.35
After loading configuration of the “User defined data” format it is displayed
in the "Select the data types you want to use" and "Selected data types"
fields (see Fig. 4.29).
Notes:
1. It possible to edit this configuration as described above.
2. To apply configuration of the “User defined data” format to the INS unit please click
“Write” button.
